Description

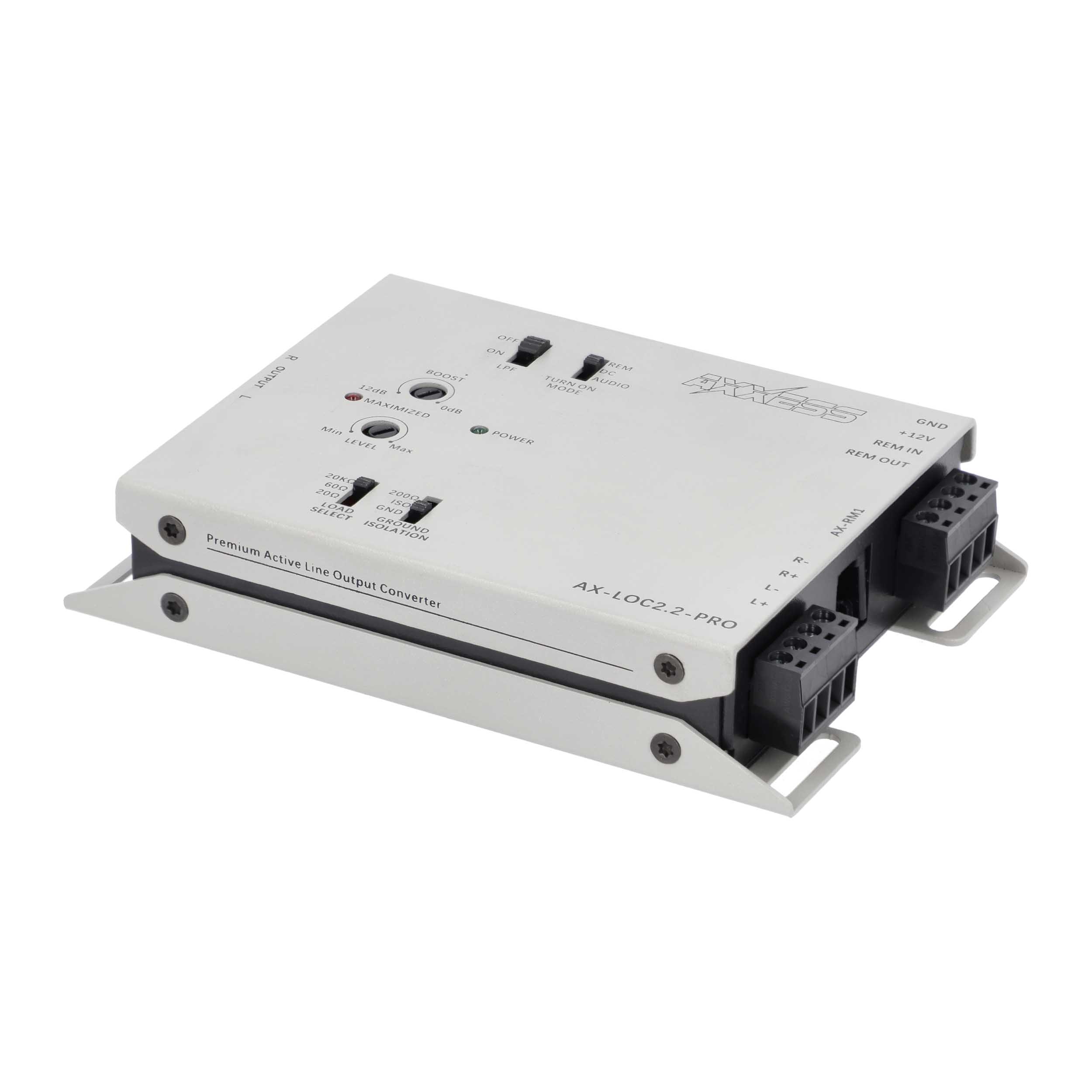

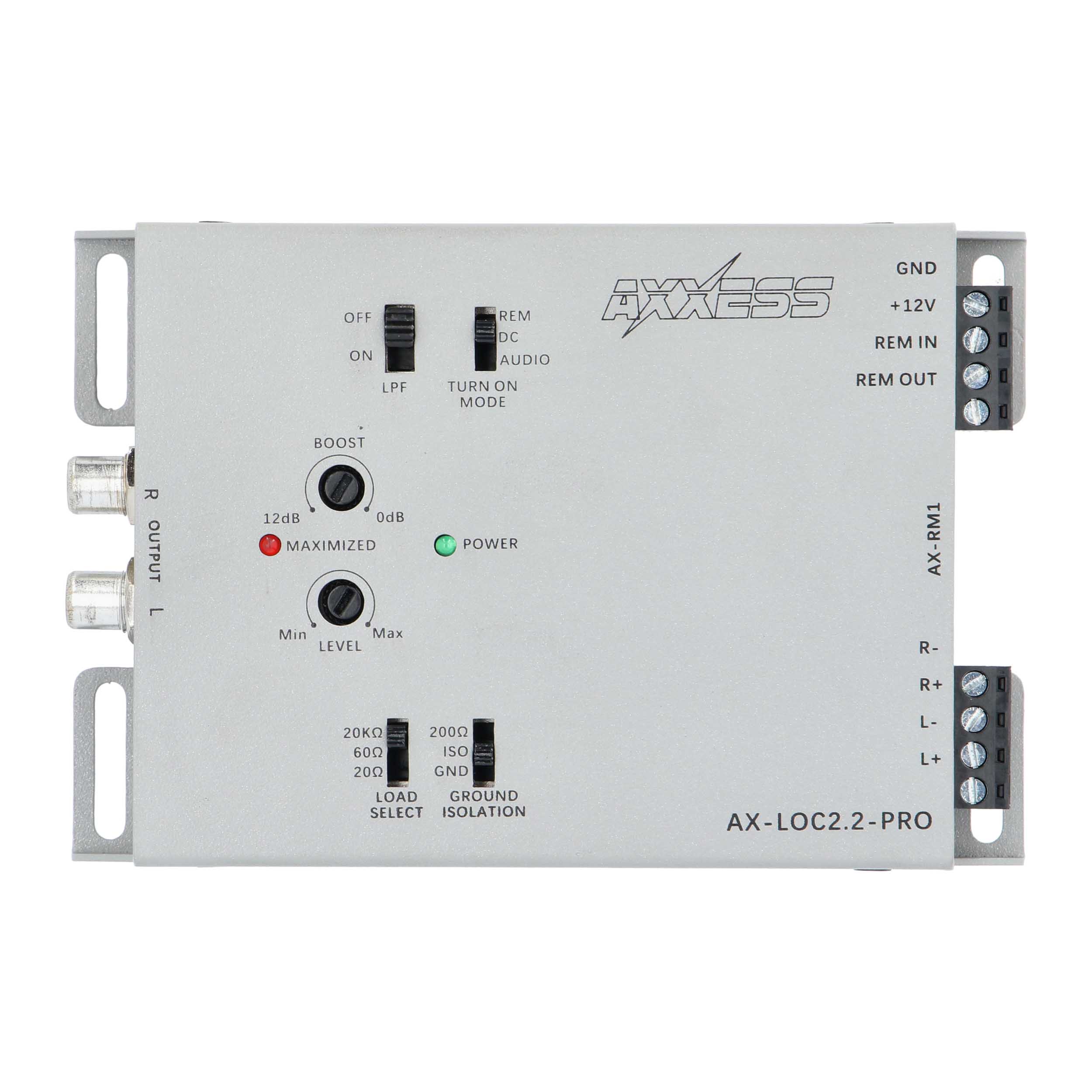

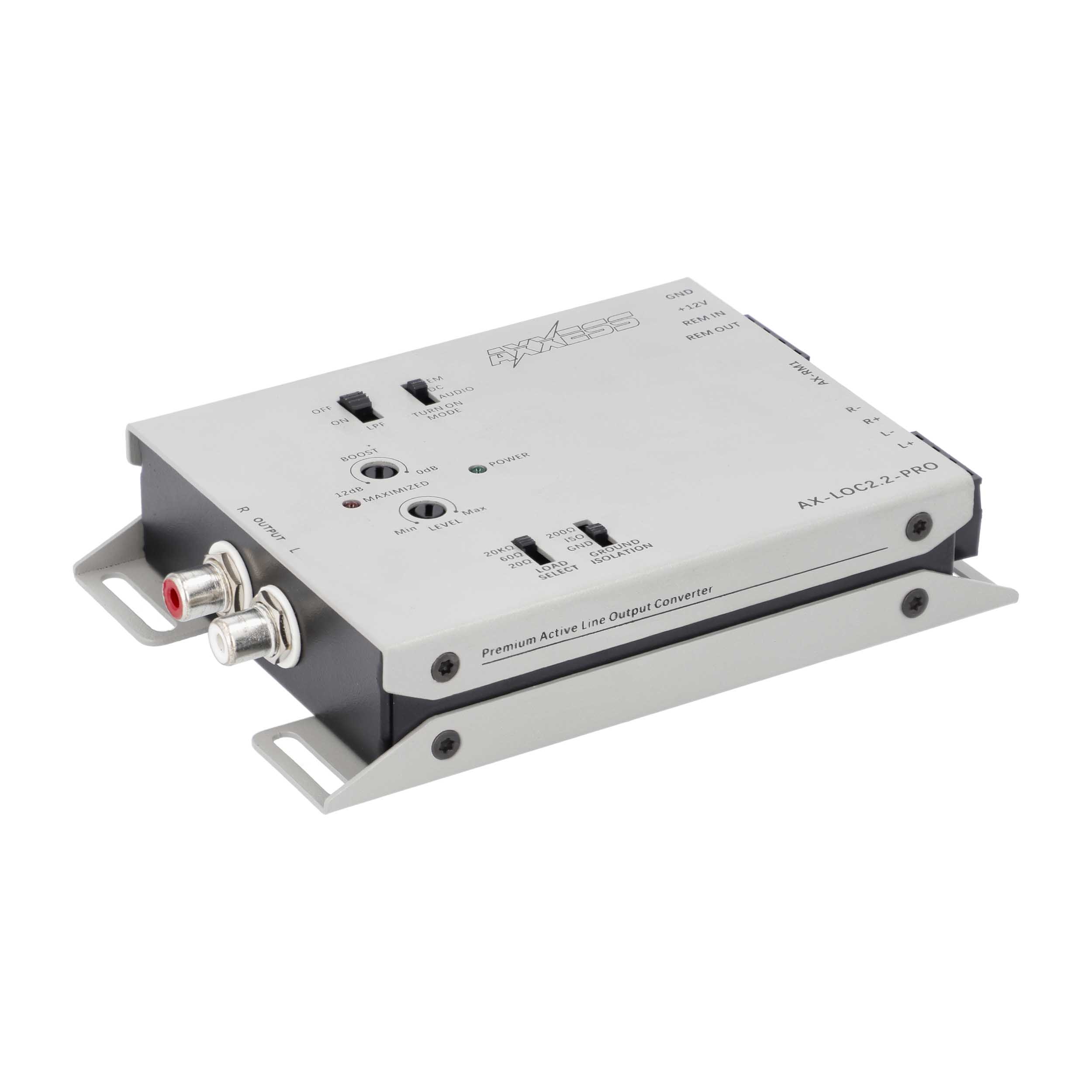

This 2-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. Add the AX-RM1 external Bass knob for additional subwoofer adjustments. This supplemental product will directly plug into the Axxess PRO series LOC’s and line driver.
Features
- 2-channel: 2 in, 2 out
- Max input level: 40V / 400W @ 20K Ohm
- Operating voltage: 9V-16V
- Optional AX-RM-1
- Trigger selection: REM / DC / AUDIO
- Remote Output Rating 500mA
- Turn on trigger (DC): 3V-7V
- Output max @13.8V: 9.5V RMS
- Input impedance selection: 20 / 60 / 20k Ohm
- Ground selection: GND / ISO / 200 Ohm
- Gain adjustment: – 28dB to +1dB
- Input sensitivity: 0.5V-20V
- Signal to noise: >110dB @6.4V output
- THD+N (Total Harmonic Distortion): <0.01%
- Frequency response: 20Hz-20kHz
- Low pass filter: <250Hz
- Bass boost: 0dB + 12dB
SEE LINK BELOW FOR INSTALLATION INSTRUCTIONS
https://metraonline.nyc3.digitaloceanspaces.com/system-assets/86f4760d36539e19270d24cd69876e3bb48b0cae517886e206426af419d82e38.pdf
