Description

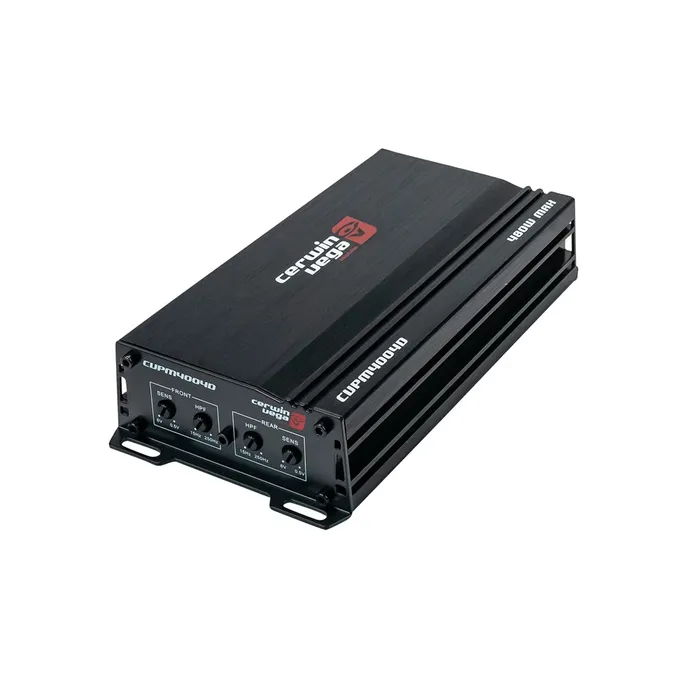

4-Channel CVPM Mini Series Full Range Class-D Amplifier
The CVPM400.4D 4-channel amplifier is engineered to power both front and rear speakers with clarity and precision. Whether you’re upgrading factory speakers or building a complete aftermarket audio system, this amplifier delivers strong, distortion-free output that brings your music to life with crisp highs, detailed midrange, and controlled bass response.Built using advanced Class-D amplifier technology, the CVPM400.4D provides high-efficiency power output while minimizing heat generation and electrical demand. This efficient design ensures reliable performance during long listening sessions while maintaining consistent sound quality at higher volume levels.One of the standout features of the CVPM Mini-Series amplifier is its compact footprint. The space-saving chassis allows for flexible installation in tight vehicle interiors, making it ideal for cars, trucks, and custom audio builds where installation space is limited. Despite its small size, the amplifier delivers impressive output capable of driving multiple speakers with ease.
Key Features:
• 4-channel full-range Class-D car audio amplifier
• Compact CVPM Mini-Series design for flexible installation
• High-efficiency amplifier technology for clean, powerful sound
• Ideal for powering front and rear speaker systems
• Durable construction for long-lasting reliability
• Perfect for upgrading factory car audio systemsSpecifications:
CVP Mini-Series 4-Channel Class-D Car Amplifier
Power Rating (RMS):
RMS POWER PER CHANNEL 4Ω 60W X 4
RMS POWER PER CHANNEL 2Ω 90W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 240W X 2
WATER RESISTANCE – YES
FREQUENCY RESPONSE (HZ): 15HZ-250HZPower Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
• 4-channel full-range Class-D car audio amplifier
• Compact CVPM Mini-Series design for flexible installation
• High-efficiency amplifier technology for clean, powerful sound
• Ideal for powering front and rear speaker systems
• Durable construction for long-lasting reliability
• Perfect for upgrading factory car audio systemsSpecifications:
CVP Mini-Series 4-Channel Class-D Car Amplifier
Power Rating (RMS):
RMS POWER PER CHANNEL 4Ω 60W X 4
RMS POWER PER CHANNEL 2Ω 90W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 240W X 2
WATER RESISTANCE – YES
FREQUENCY RESPONSE (HZ): 15HZ-250HZPower Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion:
THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity: Hi/Low Level Input: 0.15mV-6.0V
Input Impedance: Low Level Input: 20KΩ
Output Stage:
Output Impedance: 0.011Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-50KHz
Crossover (1-12dB/Oct):
Variable High-Pass: 15Hz-250Hz
Variable low-Pass:
Fuse Rating: 1x20A
Dimensions: Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
