Description
ES 165 KX3E
3-way component kit
PLEASE CHECK FIRST FOR STOCK AVAILABILITY ON THIS ITEM

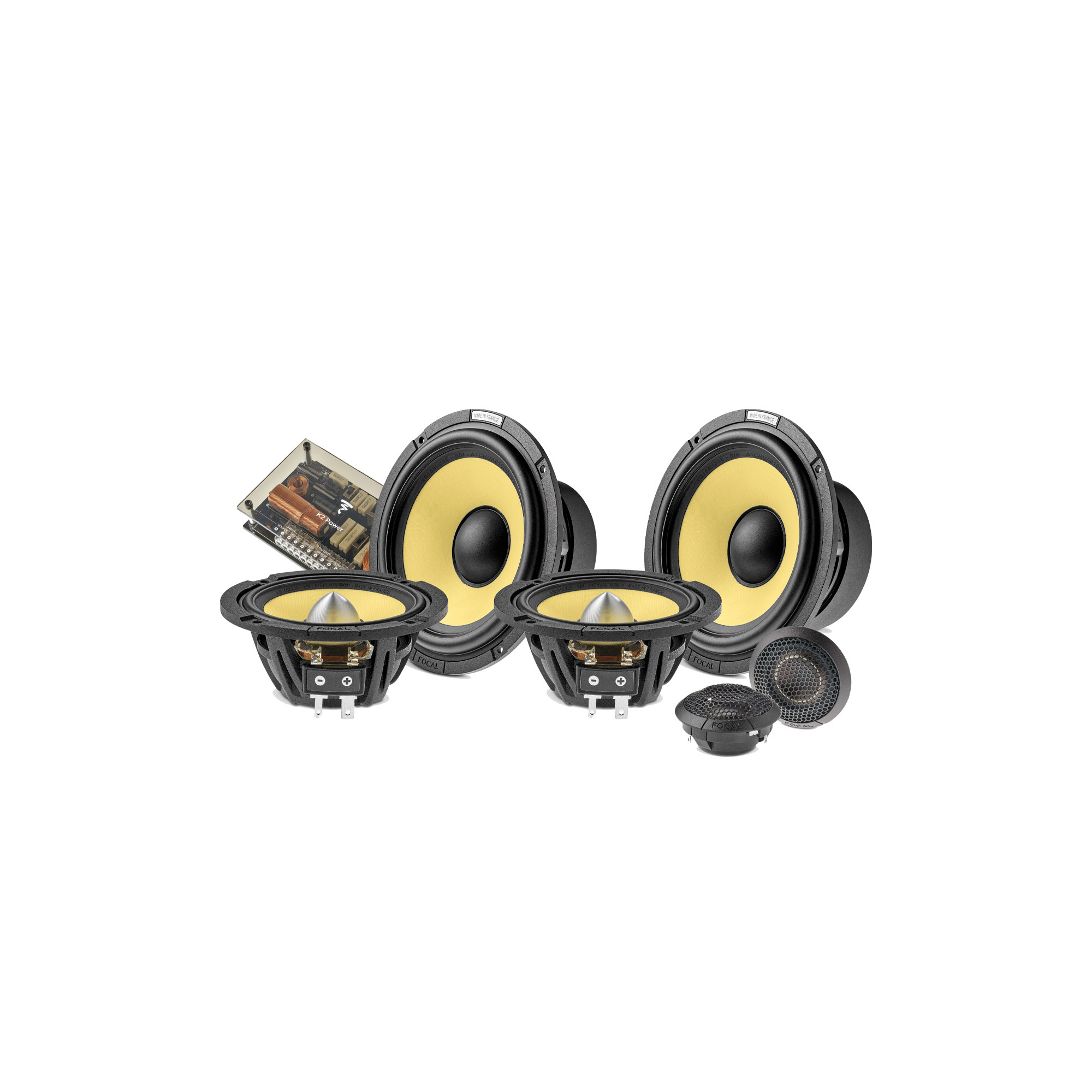

Two 16.5 cm woofers, two 8 cm midranges and two FRAK tweeters: complete, the ES 165 KX3E audio kit covers a wide frequency spectrum, with rich and dynamic mids, soft and precise highs and deep bass. The speakers are equipped with Focal’s iconic K2 membrane in aramid fiber, a performance-oriented cone for the pleasure of music in the car.
The fourth generation of K2 Power, with its emblematic aramid fibre cone, remains true to K2’s precious and
distinctive DNA, by focusing on performance, power and style, while incorporating patented innovations to
deliver the best. Designed, manufactured and developed in our workshops in France, the 3-way component kit
ES 165 KX3E also features the FRAK tweeter, an exclusive Focal technology that lies behind sensational treble.
The listening experience is marked by unparalleled harmonic balance.
Key points
• Made in France in the Focal
workshops
• K2 Cone
• FRAK tweeter from
the K2 Power M range
• Tweeter/midrange bracket
• Robust design and
high quality materials
• Exceptional power handling
• Aluminium grilles included
REALISTIC SOUND

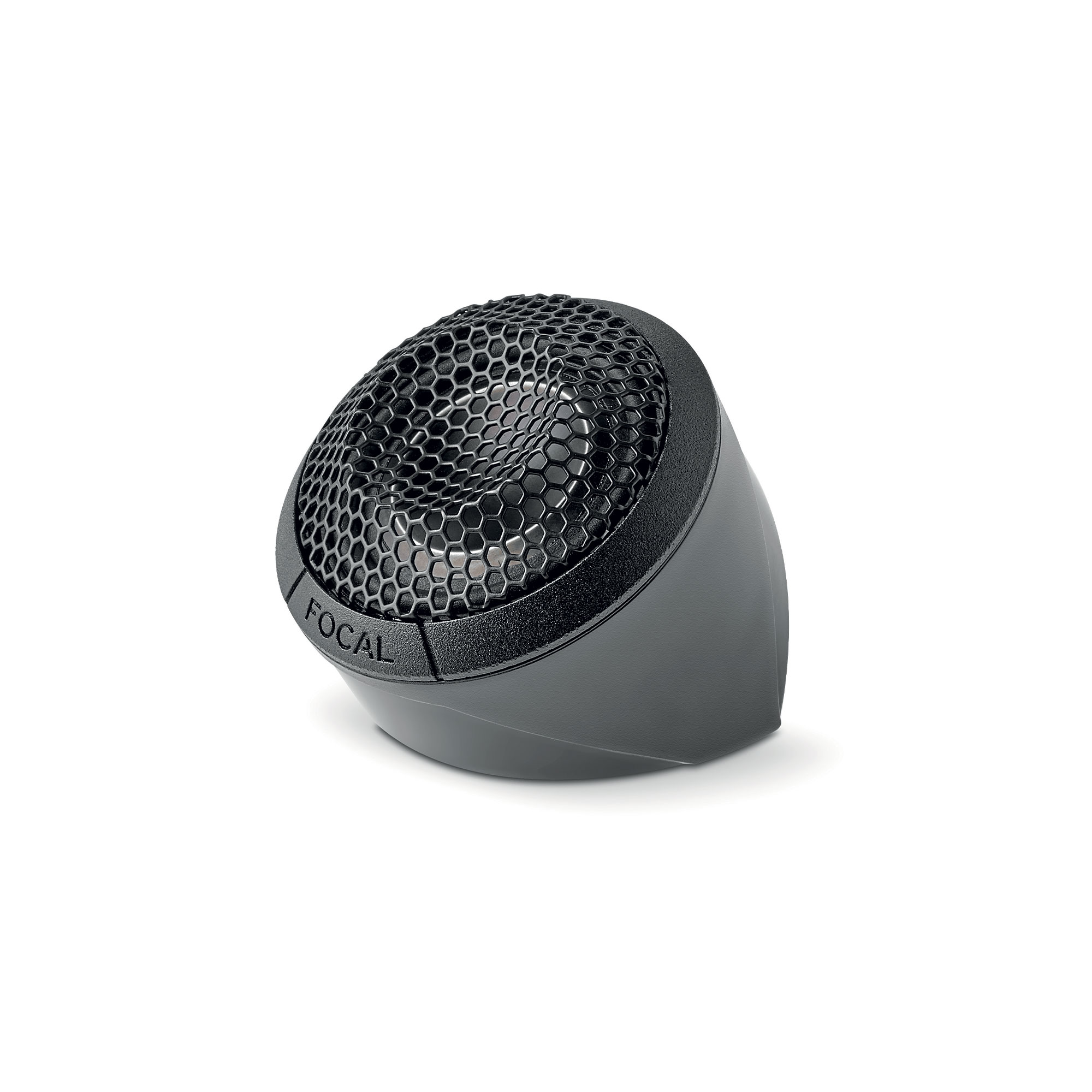

For perfect reproduction of treble and midrange, the kit includes FRAK tweeters. Patented by Focal, they deliver ultra-realistic, crystal-clear sound.
OUTSTANDING COMPONENTS
From the TMD® surround for perfect diaphragm control, to the rigid, non-magnetic aluminum frame, to the coil ventilation system that maximizes power handling: every component of the loudspeakers is designed and optimized to reproduce the full impact of the bass and enhance the precision and dynamics of the sound.
FLEXIBLE INSTALLATION
In addition to the available midrange/tweeter support, three mounting options are available for the tweeters: in the original slots, flush-mounted or on inclined brackets. The kit’s installation thus combines efficiency, simplicity and flexibility.
SPECIFICATIONS
Nominal power 120W
Maximum power 240W
Sensitivity
(2.83V/1m) 93dB
Cone K2 Sandwich
Nom. impedance 4Ω
Surround Butyl
DC resistance 3.2Ω
VC diameter 40mm 15/8″
Former Kapton
Layers 2
Wire CCWA
Magnet (dxh) 100x22mm 4×7/8″
Net weight 1,750g 3.85lbs
PARAMETERS
Rdc 3.2Ω
Fs 54Hz
Mms 16.5g
Cms 0.53mm/N
Vas 13l
Qts 0.48
Qes 0.53
Qms 5
Bxl 5.8 N/A
Sd 128.6cm2
SPL 89dB
Xmax 5.3mm
K2 sandwich membrane
Optimized filters
Tweeter TKME
