Description

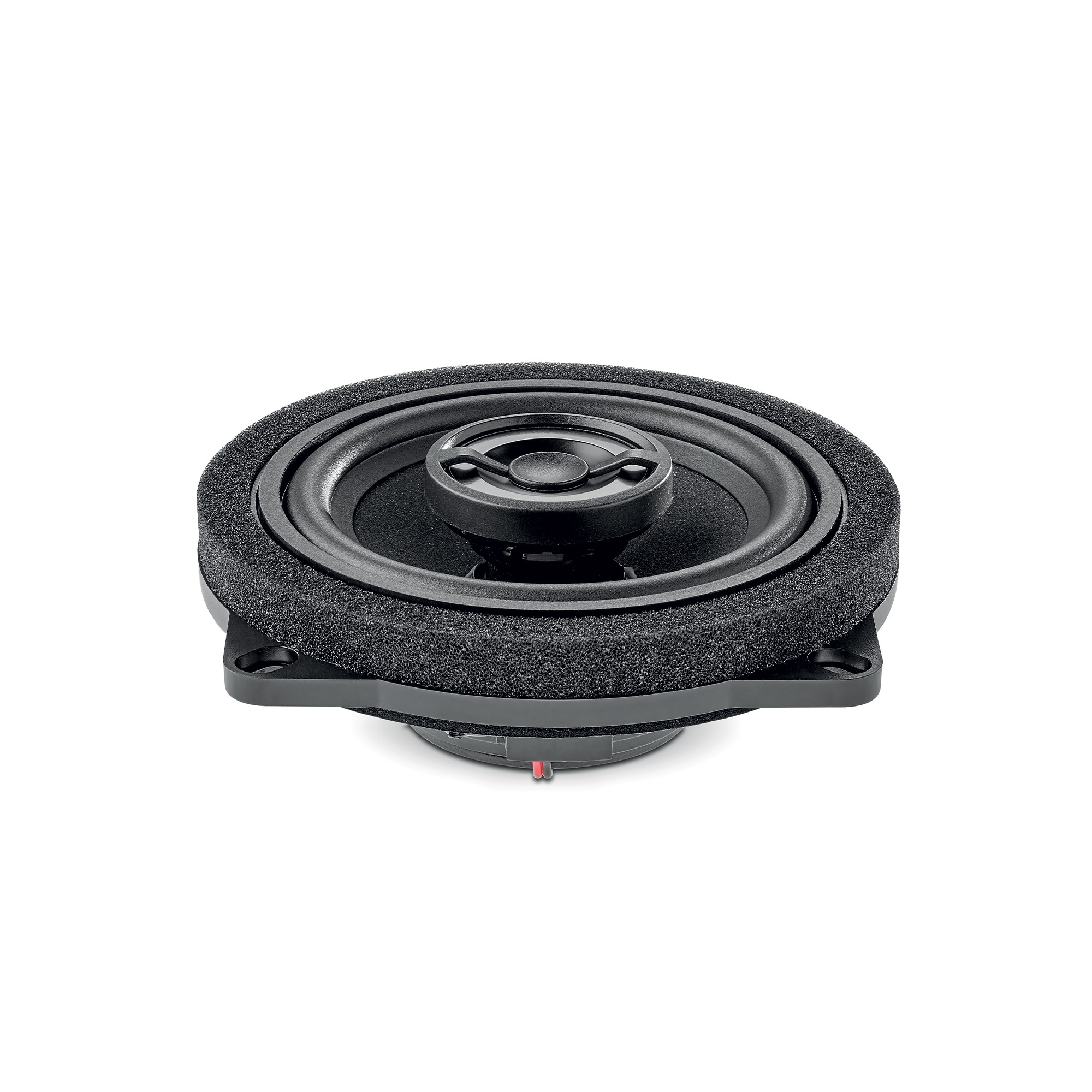

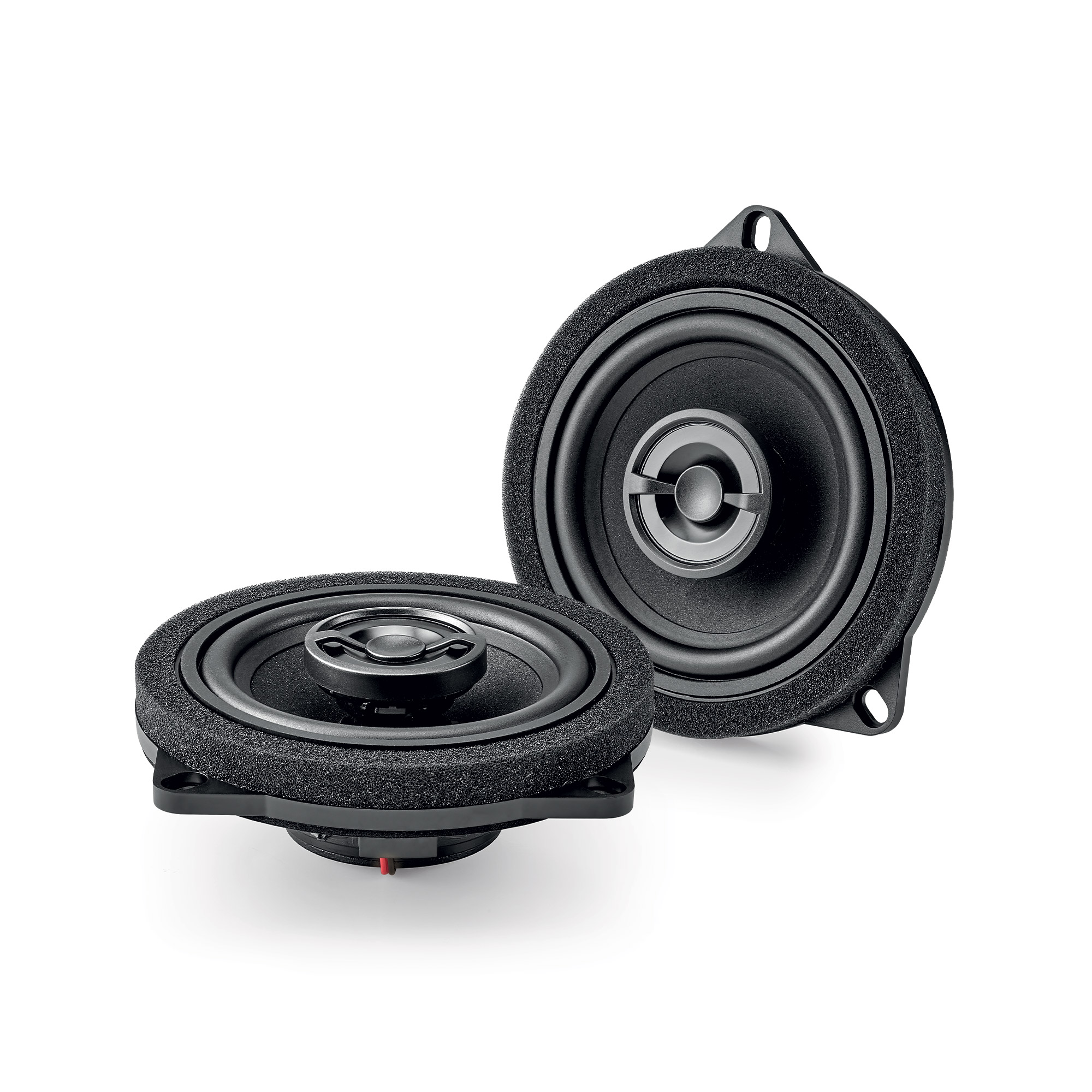

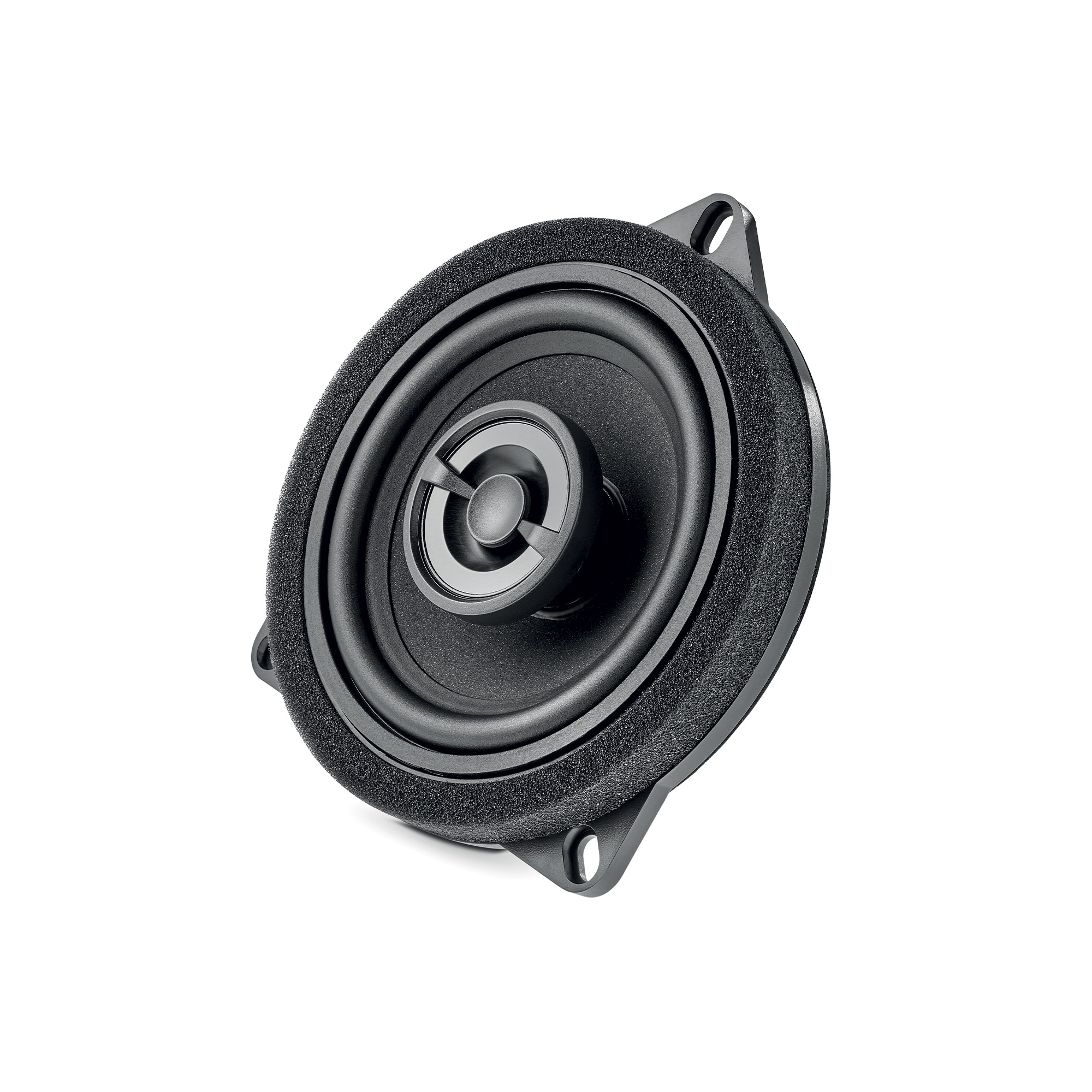

IC BMW 100 v2
2-way coaxial kit
The IC BMW 100 v2 has been designed to elevate the audio experience in the latest generation BMW vehicles including the 3 Series, 4 Series, and i4. With its seamless integration and advanced Focal technologies, this Plug & Play solution delivers precise sound reproduction, ensuring an unparalleled in-car audio experience. For a fully customised installation, consider complementing it with the ICC centre channel and BMW subwoofers.
Priced as pair
See link below for compatibility
https://www.focal.com/focal-inside/brands/bmw
Key points
- Developed in France
- Quick and easy installation
- Invisible integration, no modifications to the vehicle
- Compatible with the IS BMW 100 v2 two-way kit, the ICC BMW 100 centre channel and the ISUB BMW 2, 4 and 8 subwoofers for a complete solution
- Superior sound quality
- Plug & Play manufacturer connector
SPECIFICATIONS
Nominal power 40W
Maximum power 80W
Sensitivity 92.5dB
Cone Polyglass
Nom. impedance 4Ω
Surround Butyl
DC resistance 3.5Ω
VC diameter 25mm 1″
Former Kapton
Layers 2
Wire Copper
Net weight 400g 0.88lbs
Frequency response 80 – 23000Hz
Crossover 6dB/Oct @4kHz
- Depth : 51 mm / 2 in
- Cut-Out diameter : 119.2 mm / 4.7 in
- Depth behind surface (Mounting depth) : 26 mm / 1 in
PARAMETERS
Rdc 3.3Ω
Fs 140Hz
Mms 5g
Cms 0.2mm/N
Vas 0.7l
Qts 0.7
Qes 0.77
Qms 6
Bxl 5N/A
Sd 50.7cm2
SPL 91.5dB
Xmax 2mm
MECHANICAL DRAWING (MM)
Polyglass® cone
Cone optimises performance
for a natural sound
without colouration
Butyl surround
Excellent
stability
Neodymium magnet
Outstanding sound
performance
within a shallow depth
Aluminium/Magnesium
inverted dome tweeter
Faithful reproduction
of high frequencies
without directionality
Spacer integrated
into the chassis
Fits perfectly into
original slots
Plug & Play connector
Easy connection
for simple installation
