Description
IS TOY 170- priced as a pair
2-way component kit

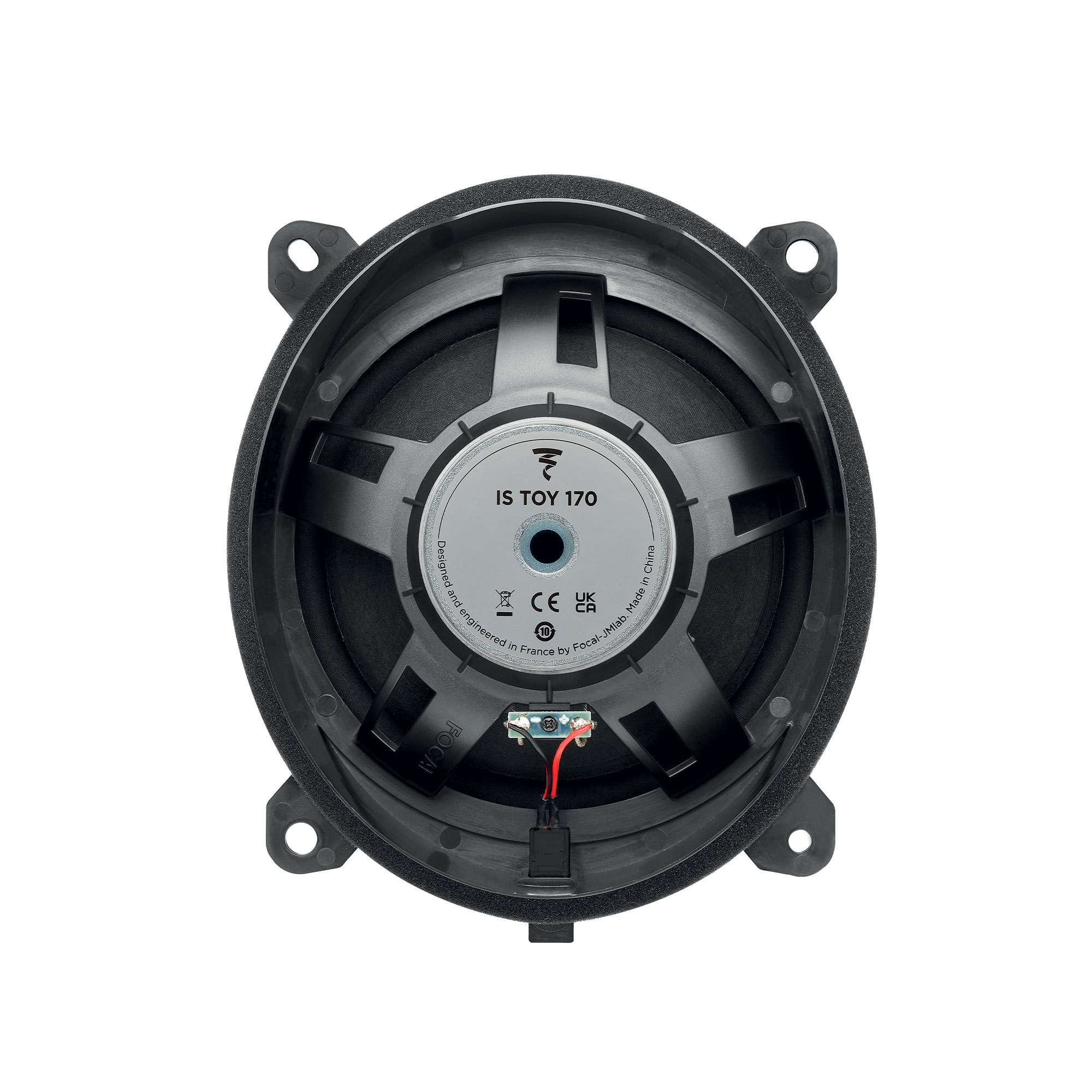

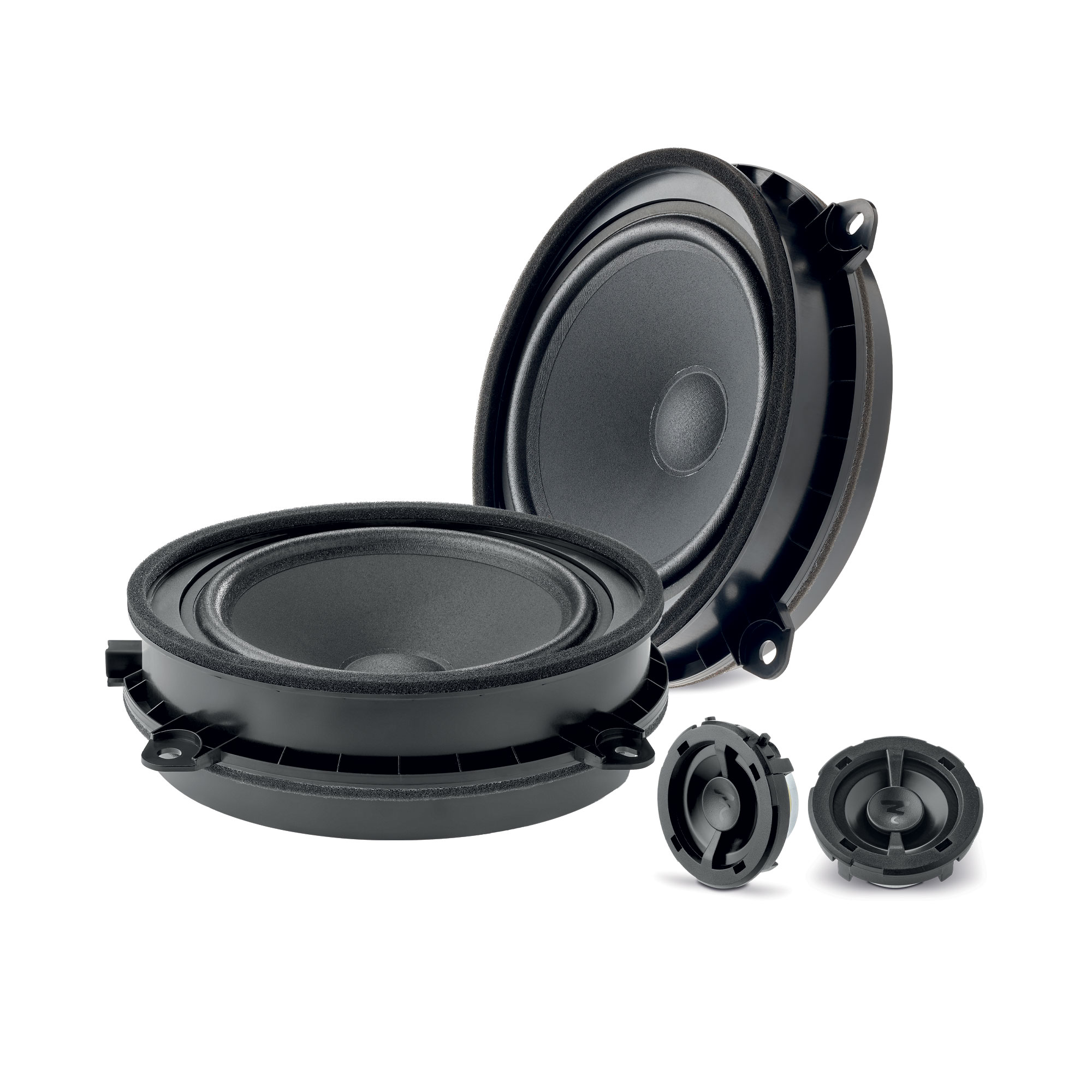

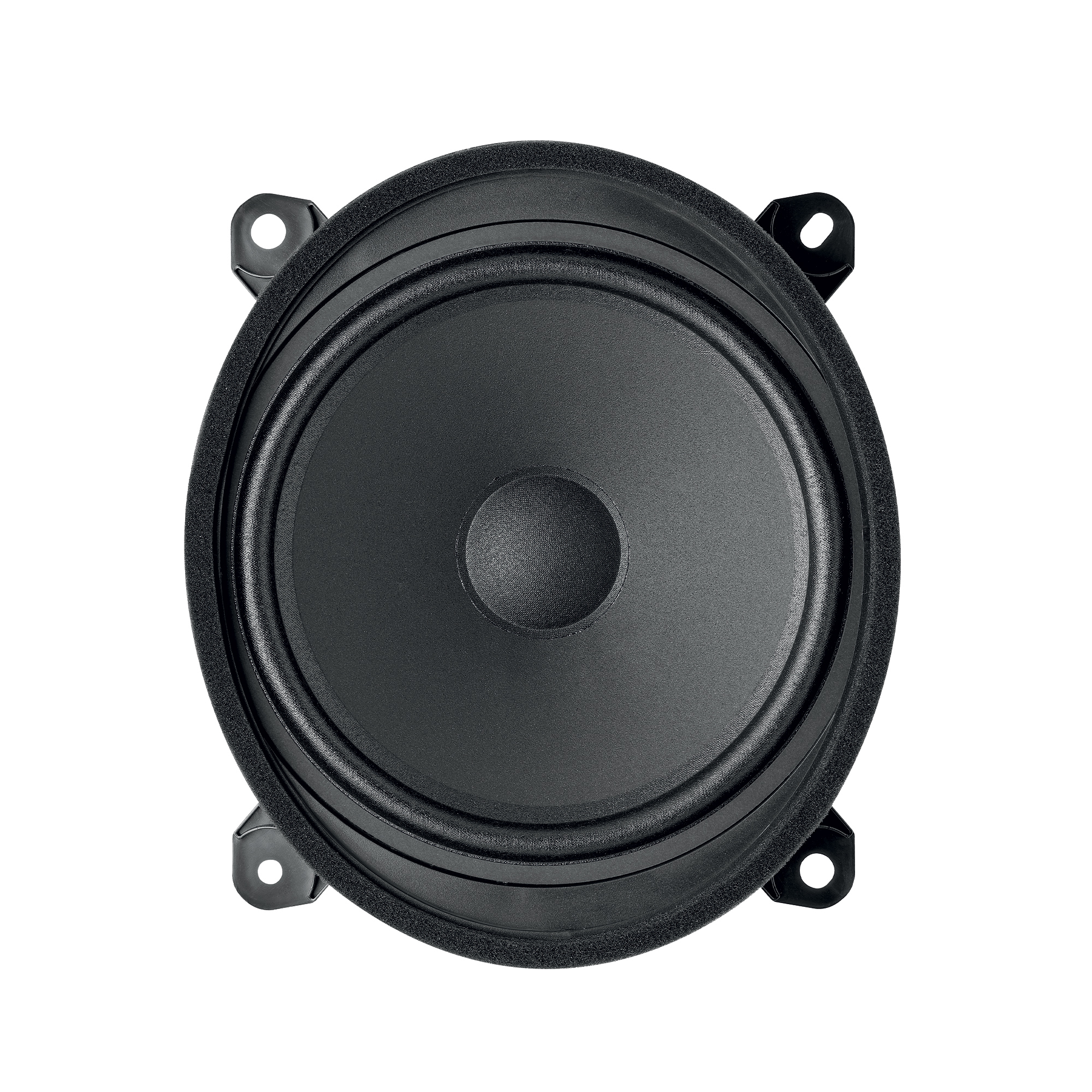

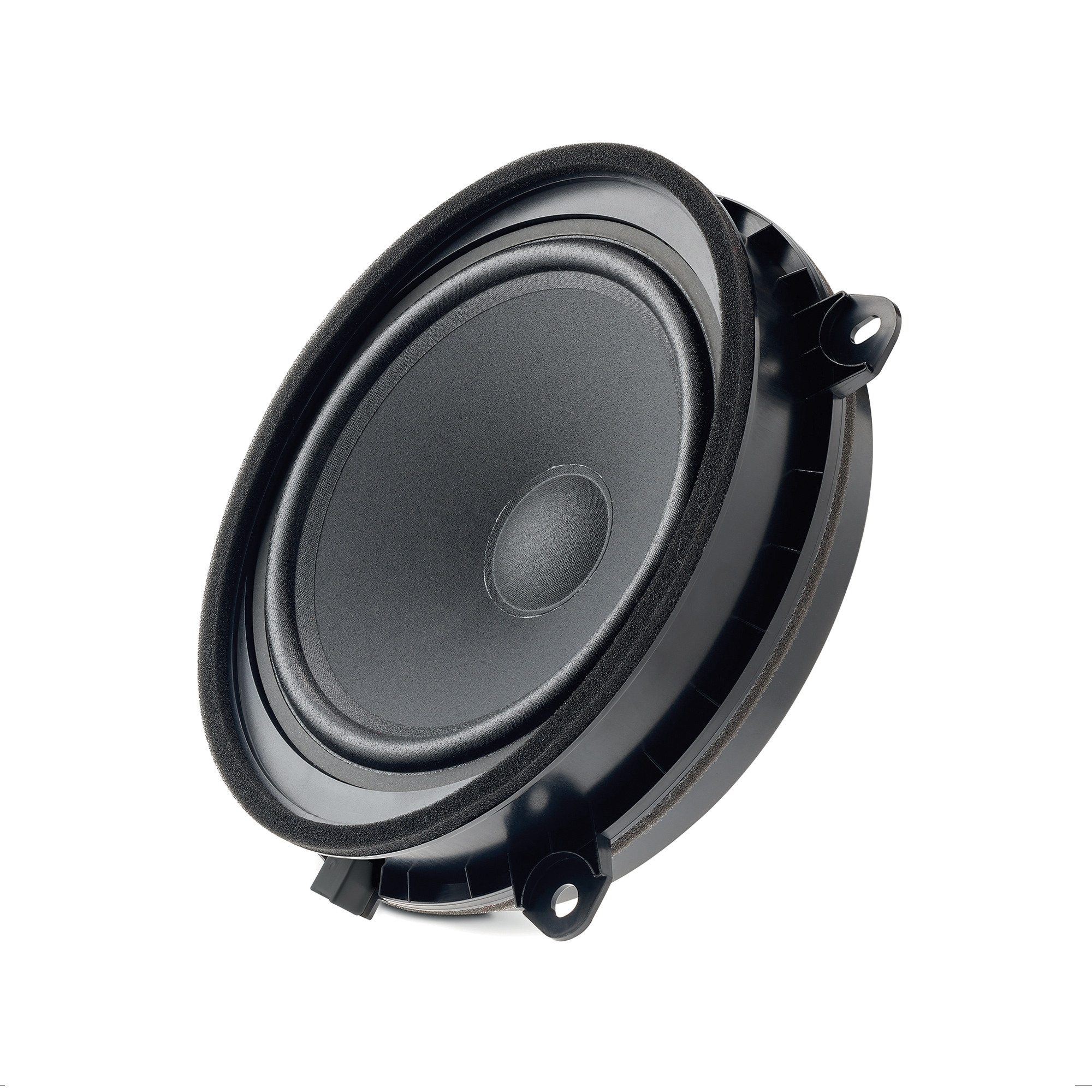

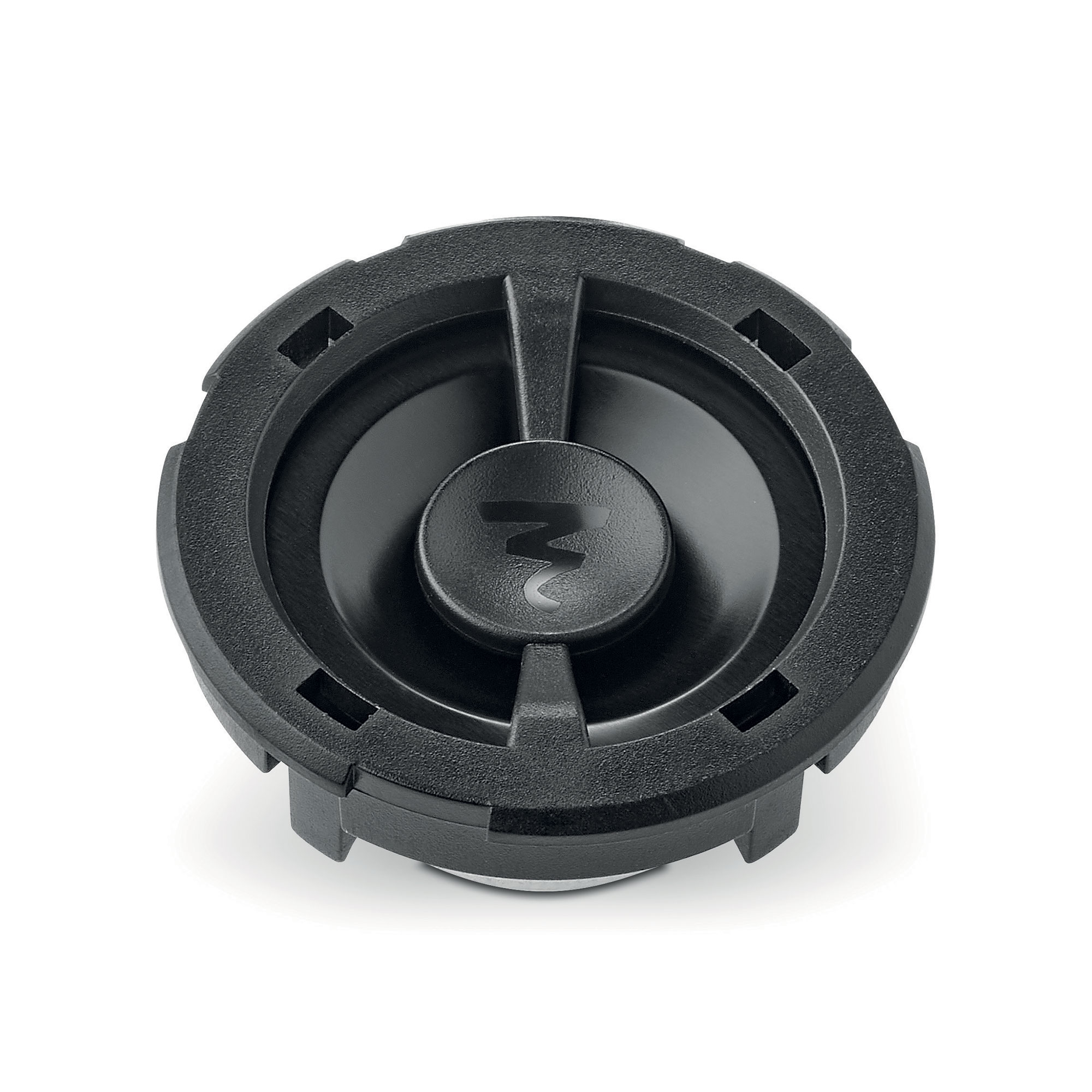

IS TOY 170 is a 2-way component kit compatible with the Toyota® Camry (XV70). It is designed for drivers looking to replace their original system with a perfectly adapted Plug & Play audio setup. The inverted aluminum dome tweeter and Polyglass speaker cone provide sound clarity across high to low frequencies. This kit elevates the in-car listening experience, ensuring Focal’s signature sound quality.
Specifications
- Depth : 88 mm / 3.5 in
- Depth behind surface (Mounting depth) : 44 mm / 1.73 in
- Product type : 2-way separate kit
- Coil diameter : 1″
- Filter : Integrated
- Impedance : 4 Ω
- Maximum power : 150 W
- Motor : Ferrite
- Nominal power : 75 W RMS
- Surround material : Fabric
SPECIFICATIONS
Nominal power 75W
Maximum power 150W
Sensitivity 93.5dB
Cone Polyglass
Nom. impedance 4Ω
Surround Cloth
DC resistance 3.5Ω
VC diameter 25mm 1″
Former Kapton
Layers 2
Wire Copper
Net weight 850g 1.87lbs
Frequency response 55Hz – 20 000Hz
Crossover 6dB/Oct @4kHz
PARAMETERS
Rdc 3.1Ω
Fs 66Hz
Mms 14g
Cms 0.4mm/N
Vas 22l
Qts 1.2
Qes 1.3
Qms 10
Bxl 3.8N/A
Sd 201cm2
SPL 93.5dB
Xmax 3mm
