Description
- 9″ WSVGA Monitor with Capacitive Touch Panel
- Floating Panel Mechanism with 3-way Position Adjustment
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay
- Built-in DAB+ Digital Radio Tuner, Bluetooth & Wi-Fi
- 2 Camera Inputs
- 10 Band EQ
- 3 Preouts 4V

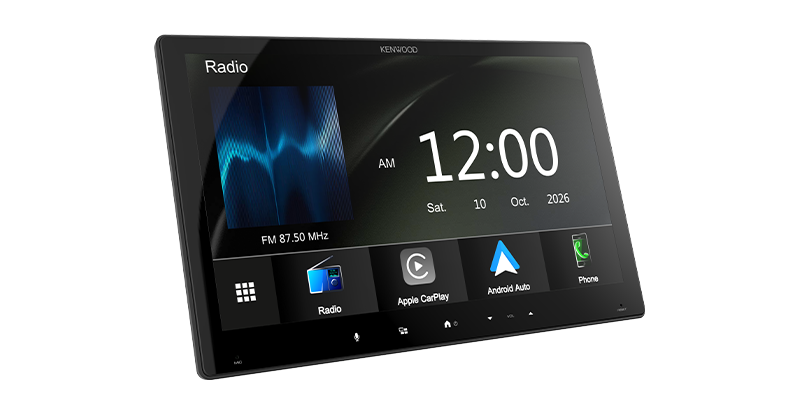

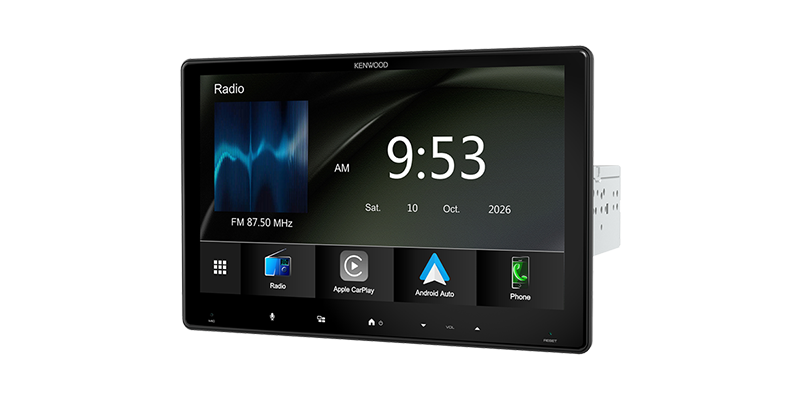

9″ Large Display
WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

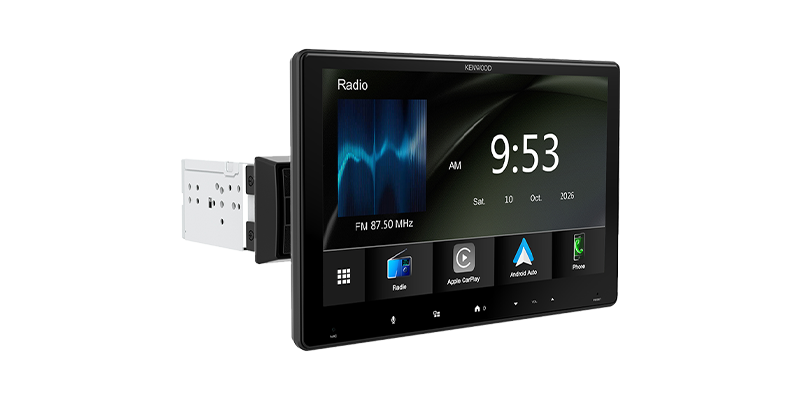

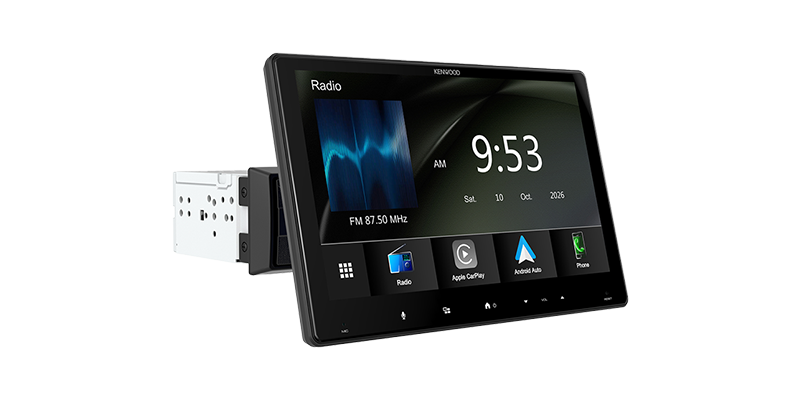

360°Adjustable Floating Mechanism
The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with left / right and tilt motion for optimal viewing.
Smartphone Connectivity
Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay
Android Auto ™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only
The Best Audio Experience
Optimal Sound Performance with 10 Band Graphic EQ
Use the graphic equalizer to tailor the sound quality to your unique tastes.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2.
*Available features vary by vehicle
Dual Camera Inputs and Parking Guide Lines
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
Additional Features
Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more

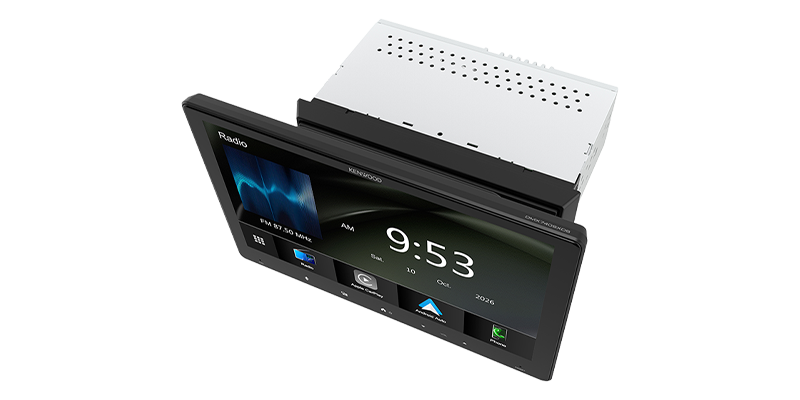

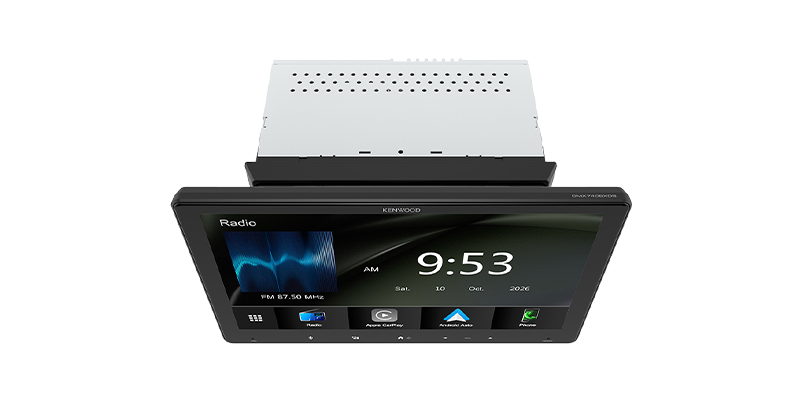

1DIN Chassis Design
The reduced height of the chassis contributes to a weight reduction and facilitates easier installation.
| Main Unit | Monitor Section |
Display Size | 9 inches |
|---|---|---|---|
| W x H | 244.5 (W) x 145.6 (H) mm | ||
| Aspect Ration | 16:9 | ||
| Resolution | 1024 x 600 | ||
| Screen Type | TFT – LED active matrix | ||
| USB I/F Section |
Connector Type | Type-A | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 32 | ||
| Charging | 1.5A | ||
| D/A Converter | 24 Bit | ||
| Audio Decoder | MP3 / AAC /FLAC (192kHz / 24bit) | ||
| Video Decoder | AVI / MKV | ||
| Supported USB Devise | MAX 32GB | ||
| Wi-Fi | Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Only used in wirless connection for CarPlay / Android Auto | |||
| Bluetooth Section |
Technology | Bluetooth Ver5.2 + EDR | |
| Transmission Range | 33ft / 10m ( line of sight) | ||
| Bluetooth Profiles | A2DP, AVRCP, HFP, PBAP, HSP, HID, GATT, SPP | ||
| FM | Frequency Range | 87.5 ~ 108.0(MHz) | |
| (Frequency step) | 50kHz | ||
| RDS / RBDS | TA, AF | ||
| AM | Frequency Range | 531 ~ 1701(kHz) | |
| DAB | Frequency Range | 174 ~ 240MHz | |
| Video | Signal System | NTSC / PAL | |
| Audio | Maximum Power Output (Front&Rear) | 20 W RMS x 4 | |
| Pre-amp Output | 4V | ||
| EQ Boost | ±12dB | ||
| Preset EQ | Jazz, HipHop, Pop, Rock, R&B, Flat, Classic | ||
| Speaker Impedance (Ω) | 4 – 8 Ohms | ||
| General | Chassis | Dimensions W x H x D | 178mm x 50mm x 150.5mm |
