Description
Product Features:
Key Features
Mono channel digital power amplifier |
D-class Amplifier |
Compact chassis |
Built-in low pass filter |
Speaker Level Input |
Signal sensing Turn-on |
Extruded aluminum heat sink design |
2 ohms load capability |

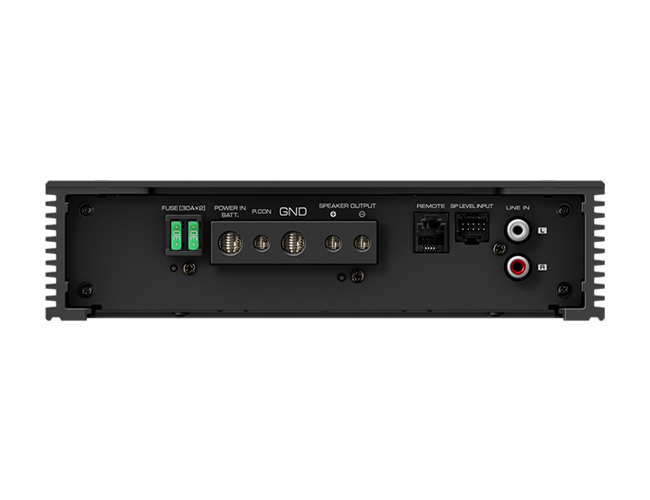

Screw-type terminals |
Amplifier Features
Class D Amplifier | Yes |
Full Range Digital Amplifier | Yes |
Load Capability | 2Ω Stable |
Rated power output (4Ω) | 300W x 1 (4Ω) |
Rated power output | 500W x 1 (2Ω) |
CEA-2006 Compliant | Yes |
Low-pass Filter | Yes |
Switched Mode Power supply | Yes, with Power MOS-FET |
Single Side Terminals | Yes |
Die-Cast Aluminium Heat Sink | Yes |
Amplifier-Specifications
Rated power output (4Ω, 14,4V) | 300W x 1 (20Hz ~ 200Hz, 1%THD) |
Rated power output (2Ω, 14,4V) | 500W x 1 (100Hz, 1%THD) |
Rated power output (CEA-2006) | 300Watts RMS x 1 at 4 ohms and 1% THD |

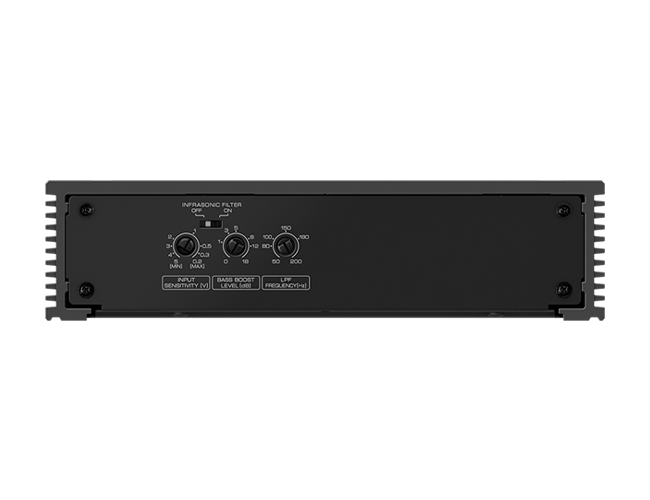

Low-pass Filter | 50~200Hz (-24dB/oct) |
Bass Boost Circuit | 40Hz, 18dB (B-Channel) |
RCA Input Sensitivity | 0.2 ~ 5V |
Input Impedance | 10kΩ |
Signal to Noise Ratio | 100dB |
Signal to noise ratio (CEA-2006) | 85dBa (Reference: 1 Watt into 4 Ohms) |
Frequency response (+0dB, -1dB) | 20Hz ~ 200Hz |
Operating voltage | 14.4V (11V ~ 16V allowable) |
Maximum current consumption | 25A |
Installation Size (WxHxD) | 213 x 53 x 149 (mm) |
