Description

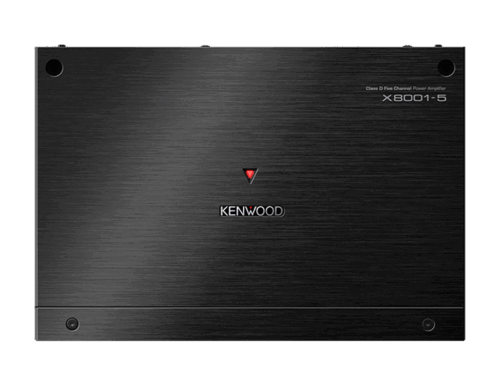

X8001-5 Amplifier
High-Resolution Audio Certified
With more information to play with, high-resolution audio tends to boast greater detail and texture, you’ll hear every song in all its detailed glory – just as the artist intended – for sound that’s more engaging, dynamic and lifelike.
More detail, more clarity. KENWOOD understands the true value and potential of High-Resolution Audio, which is why we’ve developed High-Resolution Audio certified products for KENWOOD loyal customers who want to listen music in the best sound quality.
*The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Cooling Fan allows the amplifier to operate at comfortable temperature levels even under the most stressful conditions.
High Density Construction to achieve best sounding and have one of the smallest footprints in this class.

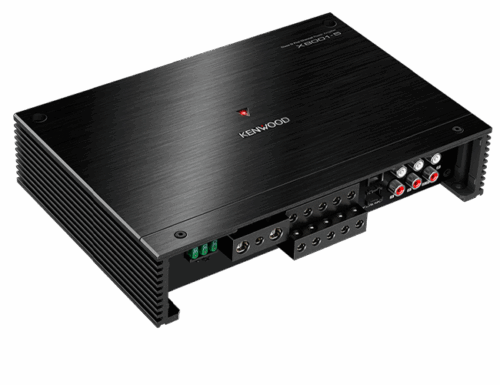

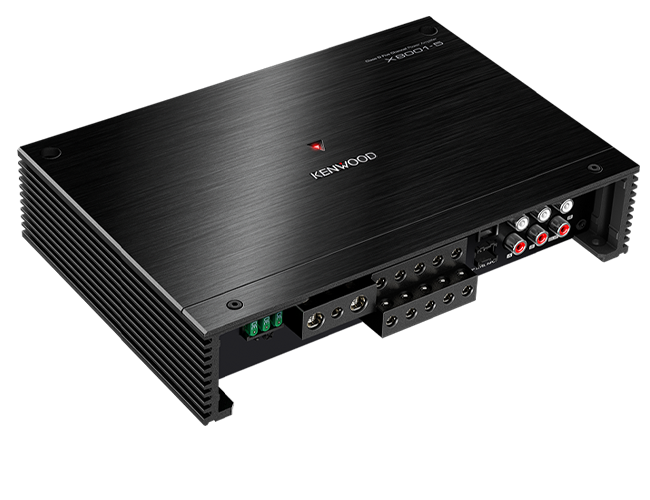

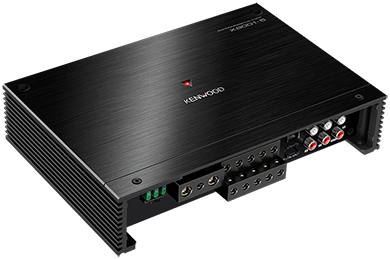

X8001-5Class D 5-Channel Power Amplifier
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

Smooth waveforms

Loss of smoothness

Fine waveforms
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer’s coil, resulting in reduced noise and enhanced sound quality.

High Quality Capacitors
PMLCAP’s (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Gauge-style terminals lock wire
into position with set screw for secure installation.

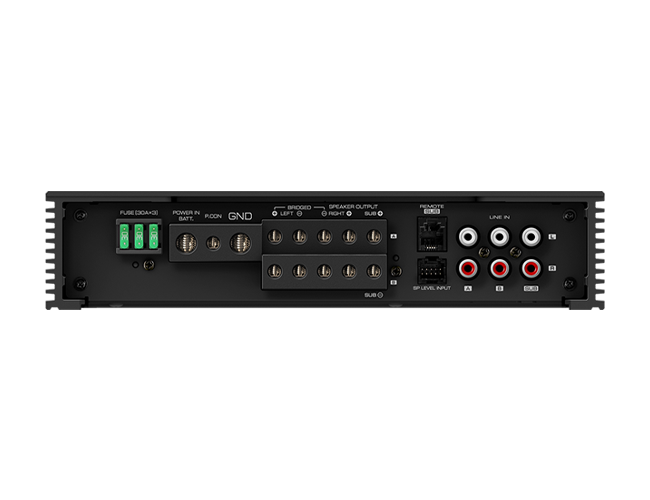

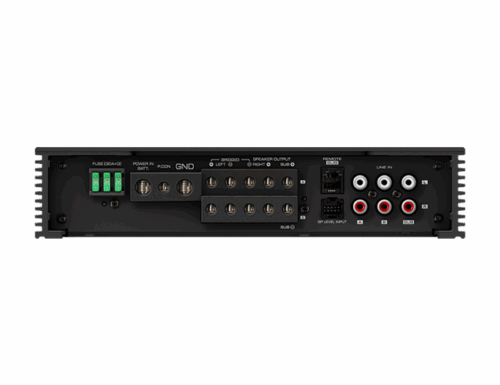

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.

- ①Fuse (30A x3)
- ②Battery terminal (POWER IN BATT.)
- ③Power control terminal
- ④Ground terminal (GND)
- ⑤Speaker output terminals (A.ch/B.ch)
- ⑥Speaker output terminals (Sub)
- ⑦Speaker level input terminal
- ⑧Remote terminal for Sub ch
- ⑨Line in terminal (A.ch/B.ch/Sub)

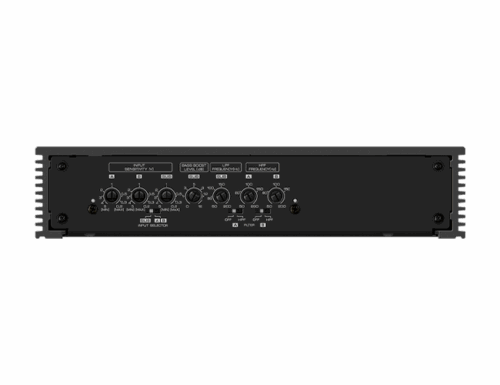

- ⑩Input sensitivity control(A.ch/B.ch/Sub)
- ⑪Input selector switch
- ⑫Bass Boost Level control (Sub)
- ⑬LPF frequency control (SUB)
- ⑭Filter switch (A.ch/B.ch)
- ⑮HPF frequency control (A.ch/B.ch)
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

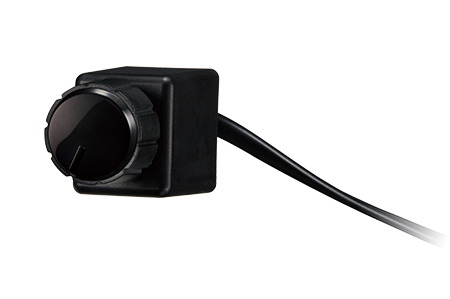

Optional Wired Level Control Ready
KCA-RC01A Optional wired remote level control allows you to easily adjust the subwoofer volume.

CTA-2006-D Value | Maximum Dynamic Power | 65W x4 + 350W x1 at 4ohms and ≤ 10% THD + N |
---|---|---|
Continuous Power Output | 50W + 300W at 4ohms and ≤ 1% THD + N | |
Signal to Noise | 77dBA x4 | |
80dBA x1 reference 1 Watt RMS | ||
Maximum Power Output | MAX POWER | 1600W |
Rated Power Output at 14.4V | A/B (4 Ohms) | 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD) |
A/B (2 Ohms) | 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD) | |
SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤1.0% THD) Other Channel | |
SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤1.0% THD) Other Channel | |
A/B (Bridged 4Ohms) | 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD) | |
Specifications | Signal to Noise Ratio | 90dB (Reference: Rated Power into 4Ohms at 14.4V) |
Frequency Response | 20Hz-50kHz (+0dB, -3dB) A/B | |
Frequency Response | 20Hz- (+0dB, -3dB) SUBch (Upper Feqency is depended on Low Pass Filter) | |
Frequency Response | 20Hz-40kHz (+0dB, -1dB) A/B | |
Input Impedance | 10k ohm | |
Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |
Bridged Connection | 4Ω to 8Ω allowable | |
Audio Section | Low-Pass Filter | Sub |
Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct) | |
High-Pass Filter | A/B | |
High-Pass Filter | Built in Variable High-Pass Filter (50Hz-200Hz, -12dB/oct) | |
Bass Boost | Sub | |
Built in Bass Boost Control (40Hz, 0dB-18dB) | ||
Infrasonic Filter | – | |
RCA Input Sensitivity | 0.2[V] – 5.0 [V] | |
Speaker Level Input Sensitivity | 4.0[V] – 12.0 [V] | |
Terminals | Battery & Ground | Wire Clamp Type Terminal Block(M6,Nickel Colored),Hexagon Screw,Capable for AWG4-AWG6 |
Speaker Output | Wire Clamp Type Terminal Block(M4,Nickel Colored),Hexagon Screw,Capable for AWG8-AWG16 | |
General | Dimensions(WxHxD) | (W) 248mm x (H) 53mm x (D) 169mm |
Operating Voltage | 14.4V(11-16V allowable) | |
Current Consumption | 48[A] | |
Key Features | Hi-Res AUDIO Compliant CTA-2006-D Compliant Class D 2 Ohms Load Capability One-Sided Connection Speaker Level Input Signal Sensing Turn-on Remote Level Control ※Input Sensitivity for Sub Remote Level Control Ready (※Controller is Option) Terminal Concealing Cover(Resin Mold) Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design A B Sub Independent Gain Adjustment A B AB(Mix) Independent Gain Adjustment |
