Description

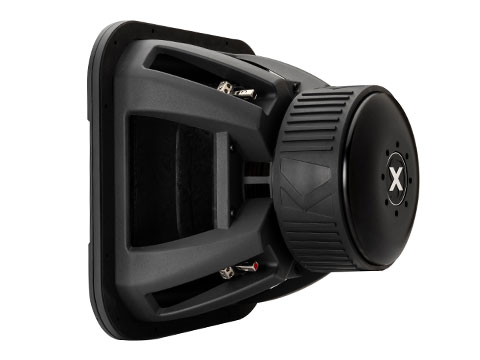

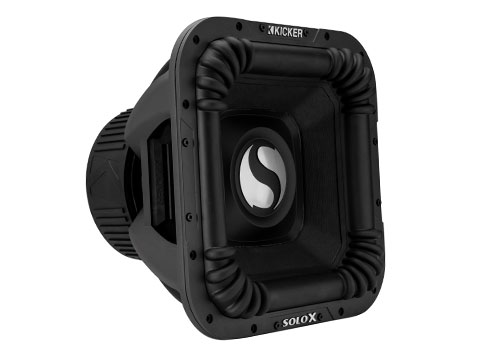

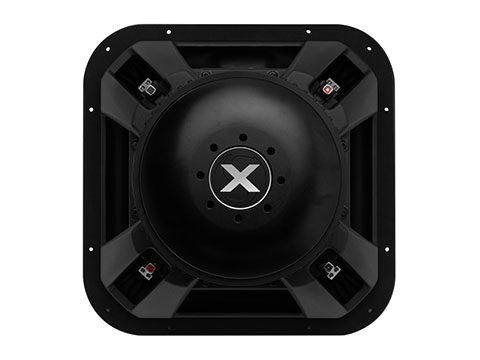

The SoloX L7X revived KICKER advanced bass technology and extreme power handling – made to turn heads!
model: 49L7X152
Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
- Forced Air Cooling™
- Three-inch, aluminum voice coil former
- Dual-spider suspension
- Double-pressed pulp cone
- Heavy-duty UV-resistant Santoprene surround
- Custom rubber magnet boot
- Cast-aluminum basket
- Single 8 AWG terminal and dual 8 AWG terminal block
- Triple-Stacked Ferrite Magnet
*SoloX 12″ shown in diagram.
Specifications
| Thiele/Small Parameters |
| 49L7X152 T/S Parameters |
| CNC Files |
| L7X.DXF – for subwoofer hole cutouts |
| 3D Print Files |
| 52GL715-Spacer-L7X.STL – 3D-printing of grille spacers |
| Size (in, cm) |
| 15, 38 |
| Rated Impedance (Ohms) |
| 2 DVC |
| Rec Amp Power rms |
| 1000-2000 |
| Frequency Response |
| 20-100 |
| Magnet Diameter (in, cm) |
| 8-11/16, 22 |
| Total Magnet Weight (oz, kg) |
| 406, 11.5 |
| Voice Coil Diameter (in, mm) |
| 3, 75 |
| Voice Coil Winding Width (in, mm) |
| 2.5, 62.5 |
| Product Dimension Sheet |
| 49L7X15 Dimensions |
| Top Plate Thickness (in, mm) |
| 0.5, 13 |
| Xmax (in, mm) |
| 1.25, 31.25 |
| Mounting Cutout (in, cm) |
| 13-3/4, 34.9 |
| Mounting Depth (in, cm) |
| 11-9/16, 29.3 |
| Recommended Vented Box Volume (Cu. Ft., L) |
| 5, 141.6 |
| Port Opening (in x in, cm x cm) |
| 4.25 X 16.5, 11 x 42 |
| Port Length (in, cm) |
| 34.75, 88 |
| Vented Enclosure Tuning Frequency (Hz) |
| 30 |
