ROCKFORD FOSGATE P1V2-68 3 WAY 6X8 COAXIAL SPEAKER

$469.00

2 in stock

Compare

Description

Punch P1 6″x8” 3-Way Coaxial Speaker P1V2-68



The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.

Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

Superior Flexibility: No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.

Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The Tru-Sight™ tweeter ensures precise high-frequency alignment, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.

Frequency Response for Punch P1 6"x8” 3-Way Coaxial Speaker

CTA-2031 Compliant
Speaker Type
Coaxial
Midrange Size
(Nominal Diameter)
6″x8″
Tweeter Size
(Nominal Diameter)
3/4” (19 mm)
Inverted Dome
Piezo Size
(Nominal Diameter)
3/8” (9 mm)
Co-Witnessed Convex
Nominal Impedance
(Ohms)
4Ω
Frequency Response
(Hz)
45Hz – 25kHz
Voice Coil Diameter
(in/mm)
1″ (25.4 mm)
Crossover
Tweeter High-Pass: 9kHz @ 6 dB/Octave
Power Handling
(Watts RMS)
75 Watts RMS
150 Watts Peak
Sensitivity
(dB @ 1W/1M)
88 dB
Cutout Diameter
7.19″ x 5.18″ (182.5 mm x 131.5 mm)
Removable Motor Cover
Yes
Grille/Trim Ring Included
No

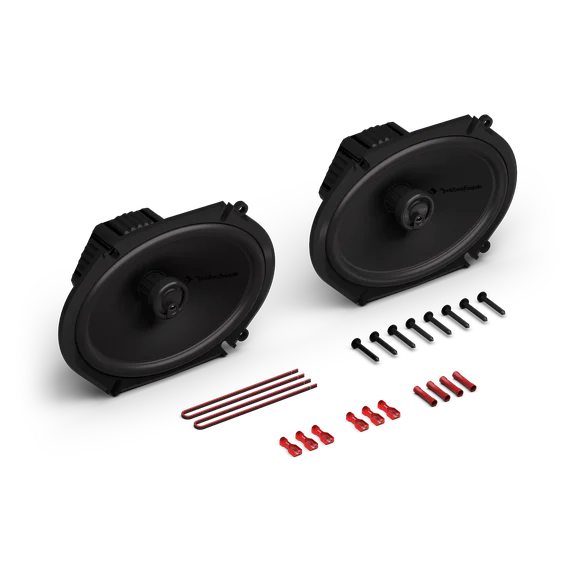

Included in the Box
(2) 6”x8” 4Ω 3-Way Coaxial Speakers
(1) 6”x8” Speaker Cutout Template
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
Mounting Hardware
Yes
Front Side Clearance
0.43″ (11 mm)
Fs (Hz)
60 Hz
Sensitivity
(2.83V/1M)
91 dB
Front-Loading Depth
(Twist-Lock Adaptor)
—
Rear-Loading Depth
(Twist-Lock Adaptor)
—
Mounting Depth
(With Motor Cover)
2.61″ (66.4 mm)
Min. Mounting Depth
(No Motor Cover)
2.37″ (60.3 mm)

Additional information

Weight 3.0 kg
