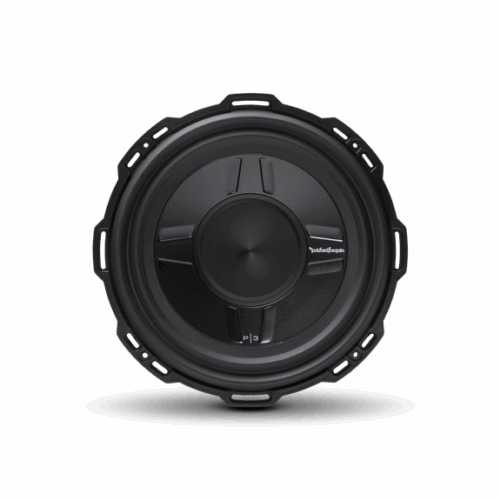

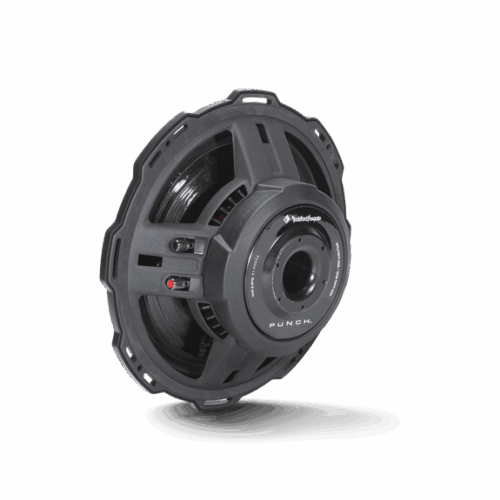

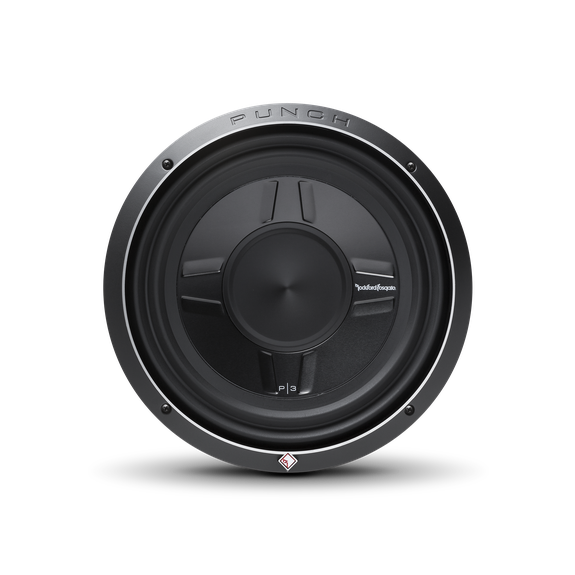

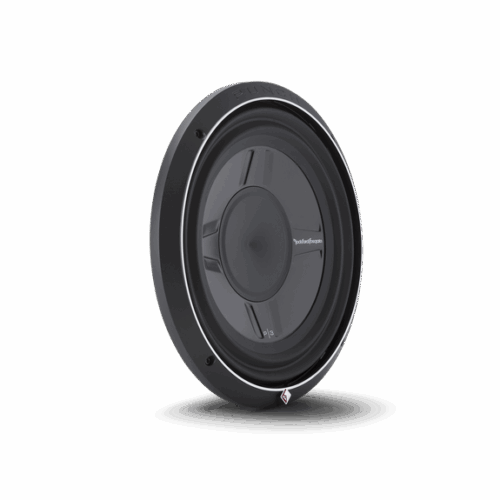

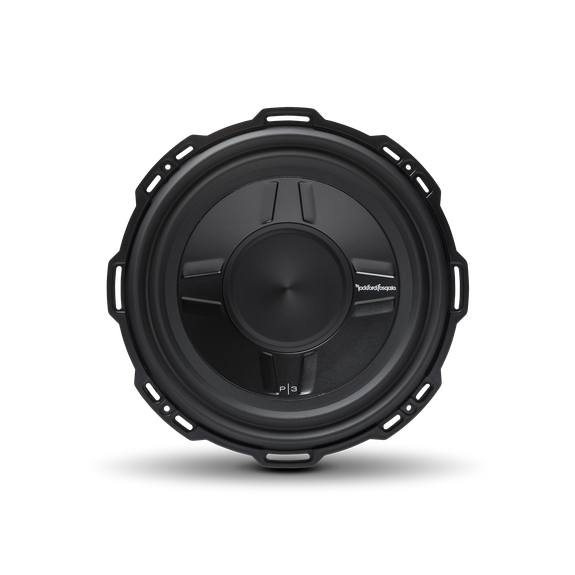

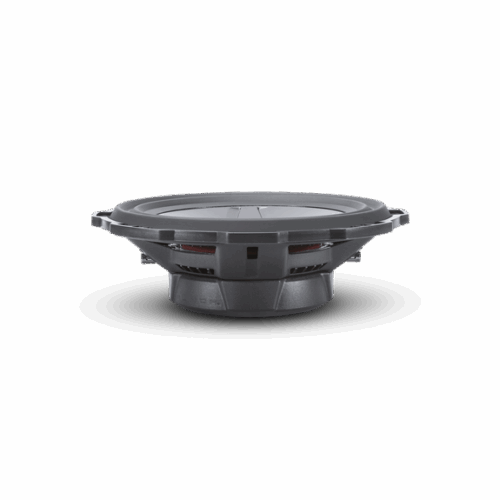

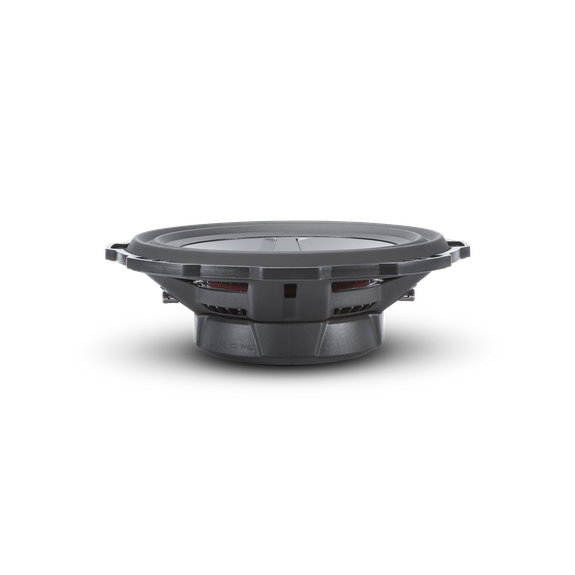

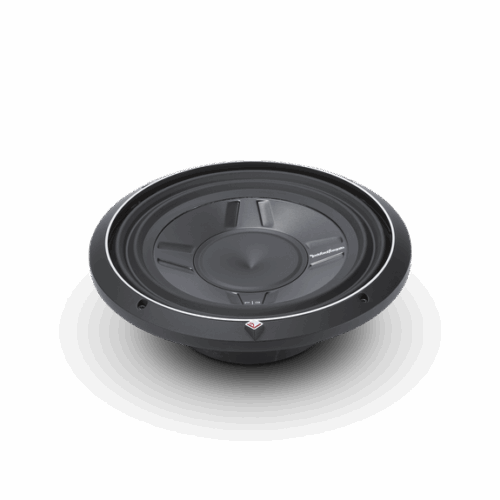

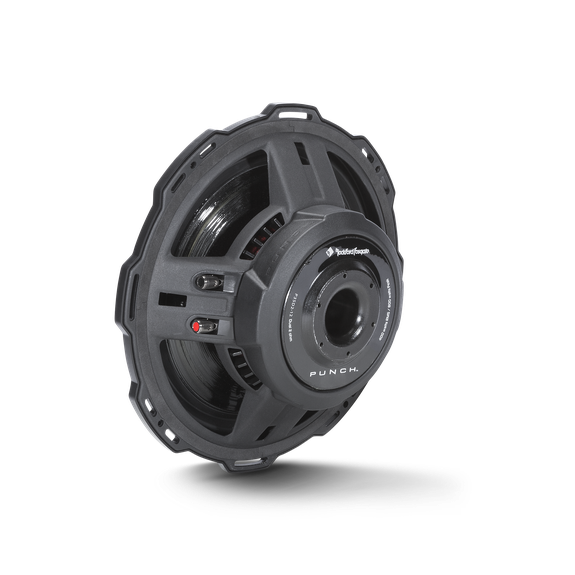

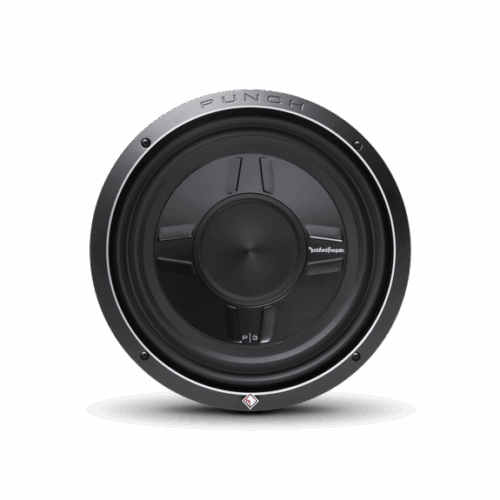

Rockford Fosgate P3S 12″ shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-12 features Dual 4-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.

The Rockford Fosgate P3S 12″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

• 1 Year Warranty
• M-Roll Santoprene™ surround
• Anodized aluminum cone and dustcap
• Shallow Motor Assembly
• StampCast basket with integrated spider venting
• Optimized for both sealed and vented enclosures
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring with optional grille

SPECIFICATIONS:

Qes

0.83

Cutout Diameter

11.22 in. (285.0 mm)

Woofer Displacement

0.086 cu. ft. (2.45 Liters)

CEA-2031 Compliant

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Le (mH)

4.4

Sd (cm²)

500

SPL (dB @ 1w/1m)

85

Xmax (mm)

8.1

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.0 cu. ft. (28.3 Liters)

Vented Box Volume (Vb)

1.25 cu. ft. (35.3 Liters)
