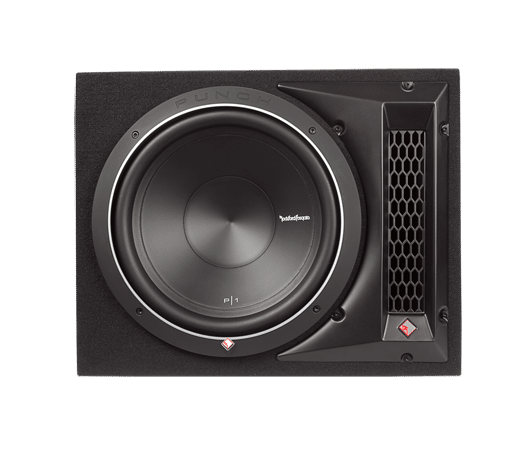

The P1-1X12 is a single P1 12” vented enclosure with 250 Watts RMS power handling wired to a 4-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We’re not talking junk in the trunk, we’re talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8″ MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2/P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.

• Constructed with 5/8″ MDF
• Proprietary high-flow, low-noise port
• High current binding posts

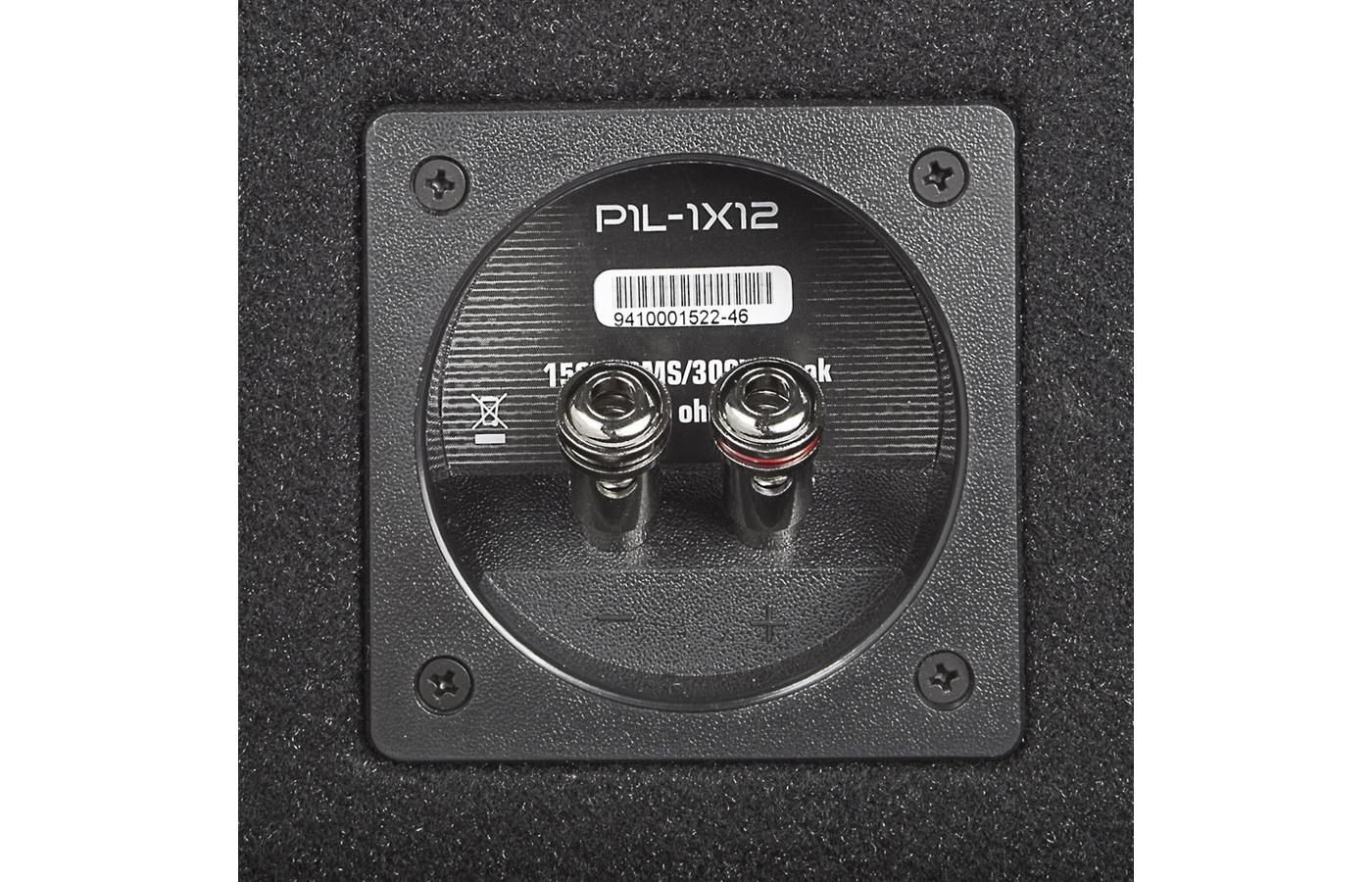

Speaker Connector

Up to 10 AWG compression terminal

CEA-2031 Compliant

Woofer Series

Punch P1 (P1S4-12)

Nominal Impedance (ea)

4-Ohm
Internally wired to create a 4-Ohm amplifier load

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Enclosure Material

5/8″ MDF (Medium Density Fiberboard)

Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)

15.125″ x 19.125″ x 15.75″
(38.4cm x 48.6cm x 40cm)

Prime 500 Watt Mono Amplifier R2-500X1

Primed for Performance, the R2-500X1 is a 500 watt, class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

R2 Amplifier Product Overview

Rockford Fosgate’s R2 amplifiers are the building blocks for great audio systems, powerful enough to even DRIVE our Punch speakers and subwoofers. They have undergone an amazing upgrade by packing them with the latest features at an incredible value. Best of all, they are designed and engineered here in Tempe, Arizona.

CEA-2006 Compliant

CEA-2006 Power Rating
300W x 1 @ 4Ω
≤1.0% THD+N

Number of Channels

1

Total Power
(Sum of Rated Power)

500 Watts

Rated Power
(RMS Continuous Power)

300 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω

Dynamic Power
(PVC/PowerCube®)

350 Watts x 1 @ 4Ω
590 Watts x 1 @ 2Ω

Bridgeable

No

Frequency Response

20 Hz – 250 Hz

Input Sensitivity

Low-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V

Circuit Topology Class

Class D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4Ω: <1.0%
2Ω: <1.0%

Signal Input

Low-Level: 2 RCA
High-Level: 4-Pin Molex

Signal Output

Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)

Tone Controls

0 to +18 dB @ 45 Hz

Crossover Controls

Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthInfrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth

Remote Controls

Yes

Visual Indicators

Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

8 AWG

Speaker Output Connector

Compression Terminal Block

Cooling

Convection

Heatsink

Operating Voltage

9 – 16 VDC

Recommended Fuse
(not included)

80 A

Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)

52 A

Dimensions (H x W x D)

1.9″ x 6.8″ x 8.5″
(4.9 cm x 17.3 cm x 21.5 cm)
