Description
CERWIN-VEGA MOBILE’S assortment of award-winning VEGA ACTIVE POWERED SUBWOOFERS provides the ultimate all-in-one Bass Solution Package without taking up any valuable trunk space. With a fully integrated amplifier encased in a cast aluminum heatsink in conjunction with the Subwoofer, a simple plug-and-play operation is achieved. The innovative Spare Tire Application Product offerings make for a custom-fit look for most vehicles.
FEATURES
Power: 150W RMS@4ohm@100Hz, 600W Max
Bass Boost: 0-12dB
LPF Filter: 30-150Hz
Phase Switch: 0 or 180 degrees
PWM MOSFET Power Supply/Thermal Protection Circuit
Adjustable Input Sensitivity
Remote Subwoofer Control Included
RCA and High-Level Inputs
Passive Radiator Design
Slim 12” 4O subwoofer
Remote Bass Knob Included
SPECIFICATIONS
Subwoofer 12” (Actual 11.3”)
Amplifier 1 Channel
Nominal Impedance (ohms) 2O
RMS Power Rating 150W
Max Power Rating 600W
Distortion – THD (1KHz@4O) <1.0%
Distortion – S/N Ratio (A weight @ 1W) >90dB
Frequency Response 20Hz – 150Hz
Input Sensitivity High 0.9V -12V
Input Sensitivity Low 0.3V – 5V
Phase 0 or 180 degrees
Low Pass Filter 50Hz – 150Hz
Bass Boost 0 to + 12dB
Subsonic Filter 20Hz
FUSE Ratings – ATC 25A

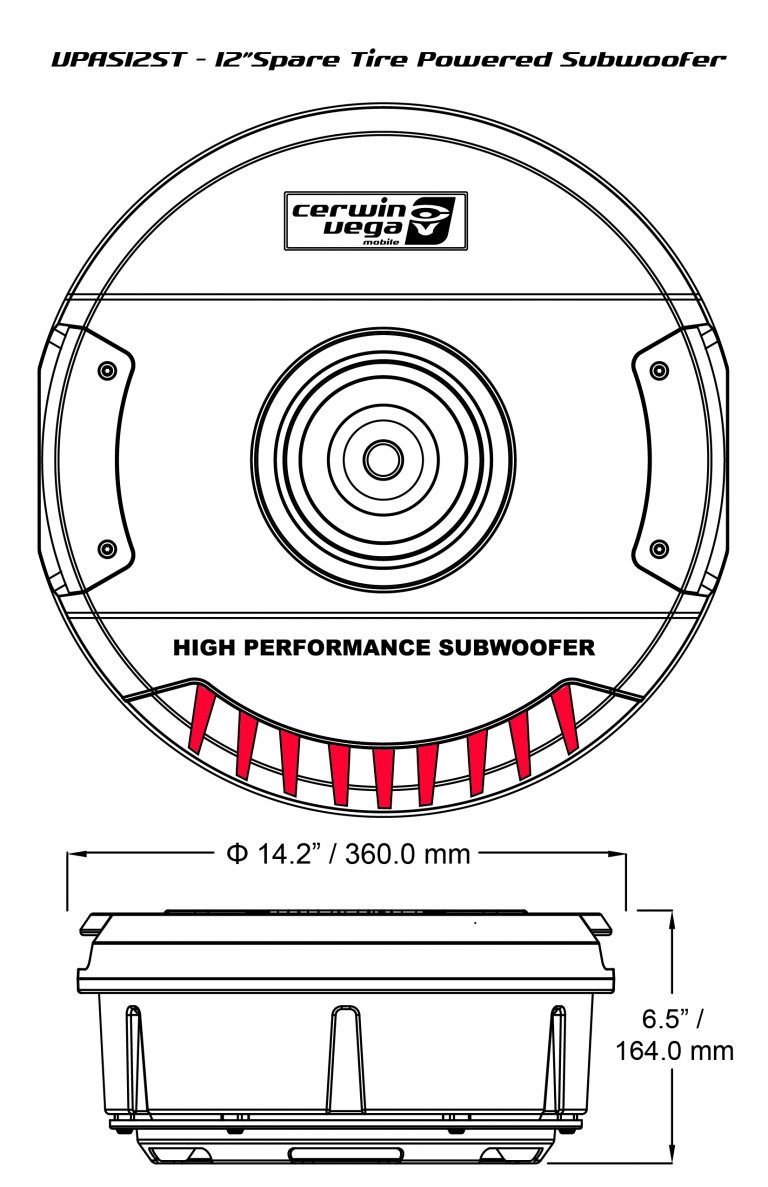

Mounting Diameter (inch/mm) 12.6″ (320.2mm)
Mounting Depth 4.7″ (120)
Outside Diameter: 14.2″ (360mm)
Remote Included
Dimension – Length x Width x Height – Inches(mm) 14.2” X 14.2” X 4.7” (360.0 X 360.0X 120.0 mm)
