Description

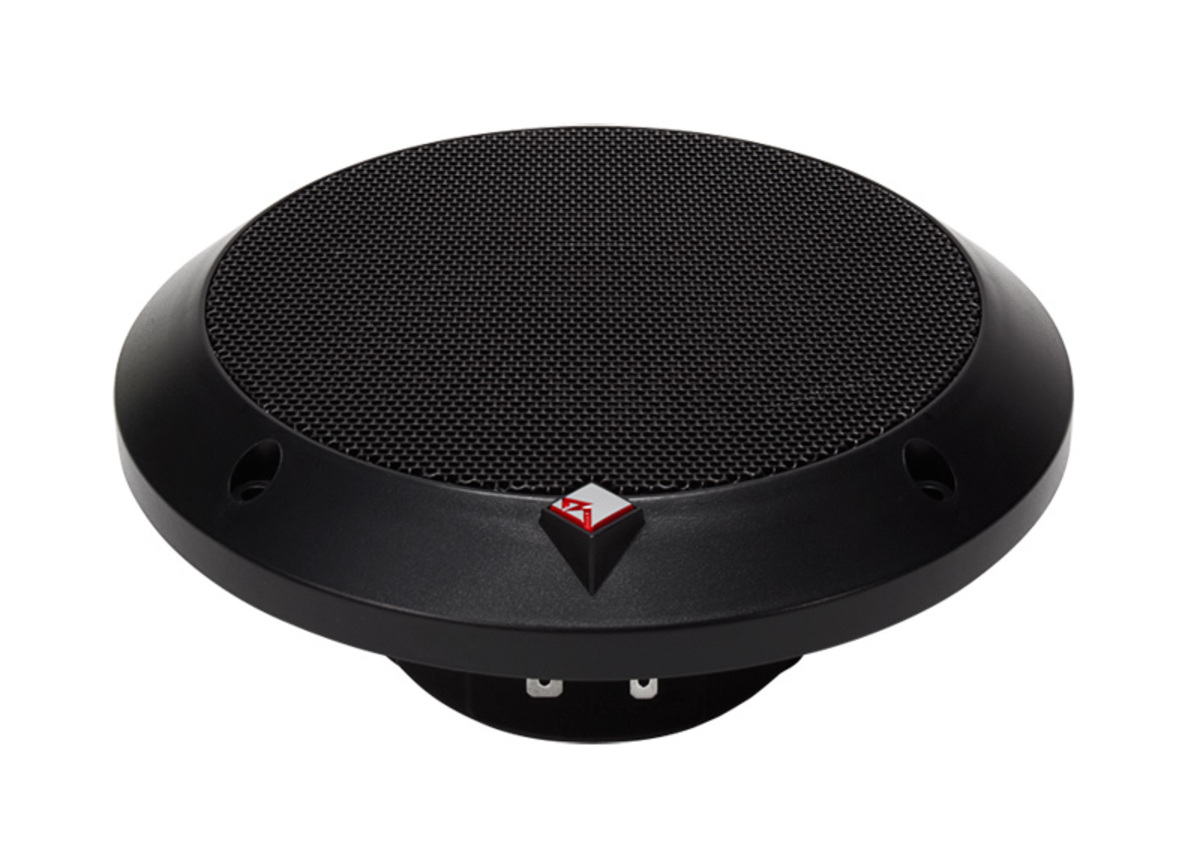

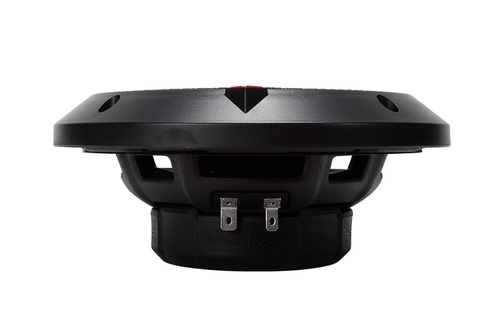

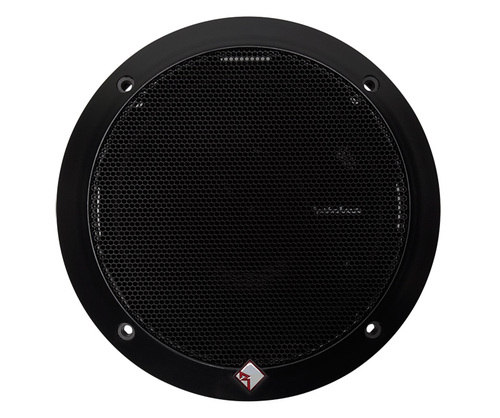

Punch 6″ Series Component System

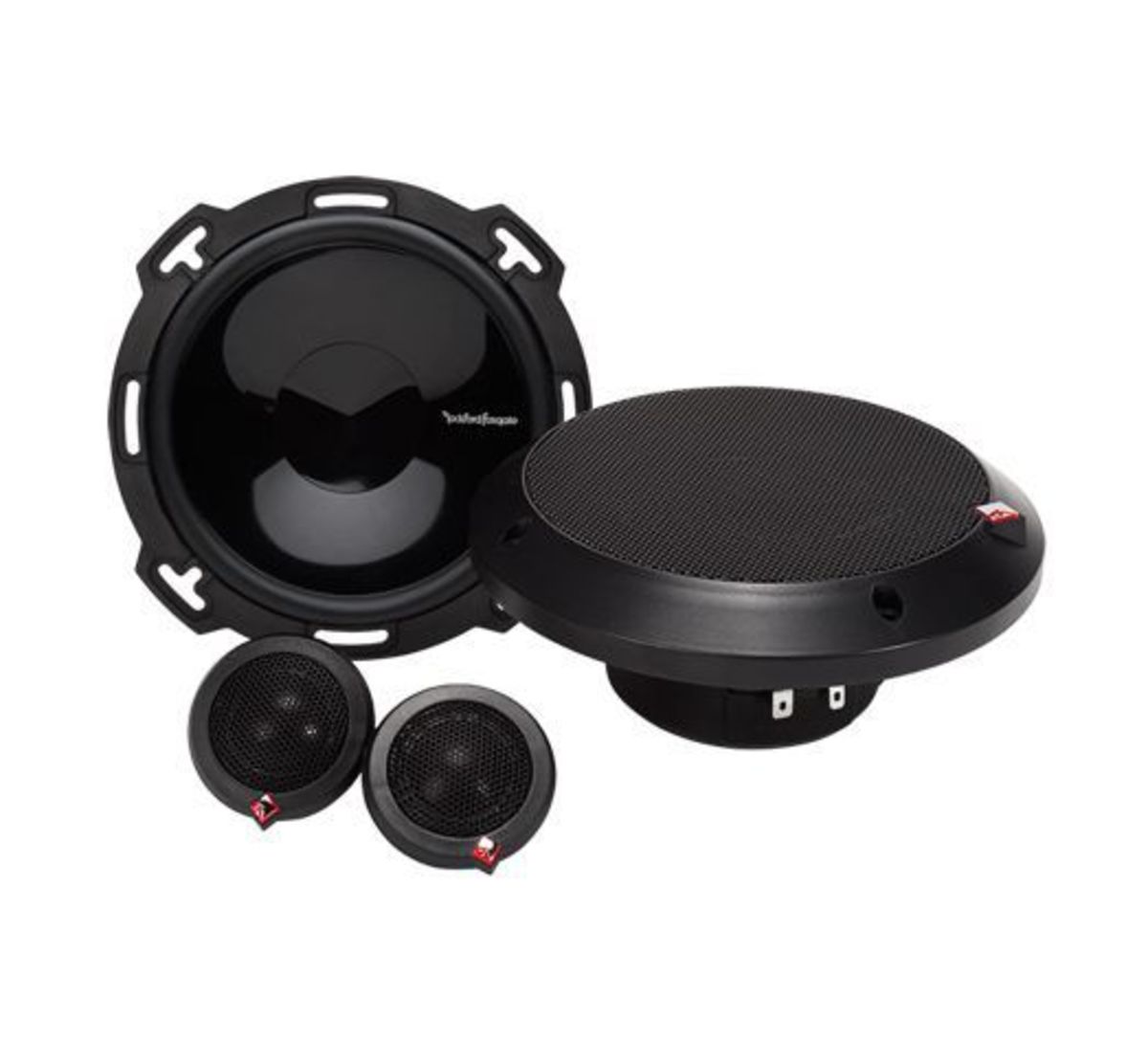

The P16-S is a 6″ 2-way component system with 1″ soft dome tweeters and is rated at 60 watts RMS. The system includes a pair of tweeters, two woofers with grilles, integrated crossovers, and mounting hardware.
-

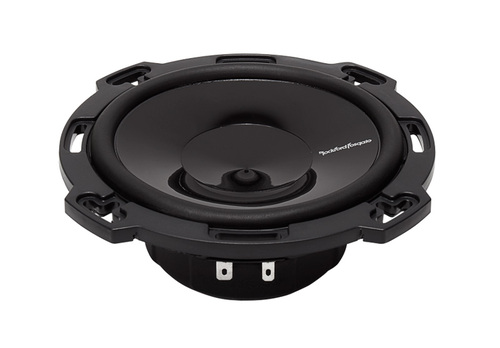

- FlexFit basket design
- ICC (Integrated Concealed Crossover)

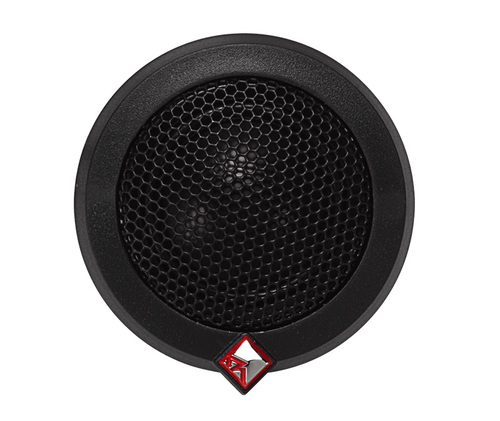

- PEI dome tweeter
- Recessed tweeter mount uses standard 1-3/4″ hole saw
- Butyl rubber surround
- Injection molded mineral filled polypropylene cone
P16-S
Car audio fanatics will love the Punch series 6″ component system. It features a FlexFit basket for compatibility with various factory speaker mounting locations and a sweet ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.
CEA-2031 Compliant
Speaker Type
Component System
Tweeter Size
(Nominal Diameter)
(Nominal Diameter)
1.0″ (25.4 mm)
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6″
Tweeter Mounting Depth
0.50″ (13 mm)
Midrange Mounting Depth
1.93″ (49 mm)
Nominal Impedance (Ohms)
4-Ohm
Frequency Response (Hz)
60Hz – 22kHz
Mounting Hardware
Yes
Grille/Trim Ring Included
Yes
Crossover
Tweeter crossover built into midrange basket
12dB/octave
12dB/octave
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
87.2
Power Handling (RMS)
60 Watts RMS
120 Watts Max
120 Watts Max
