Description
RICH AND IMPACTFUL SOUND!
6,5″ TWO-WAY COMPONENT KIT

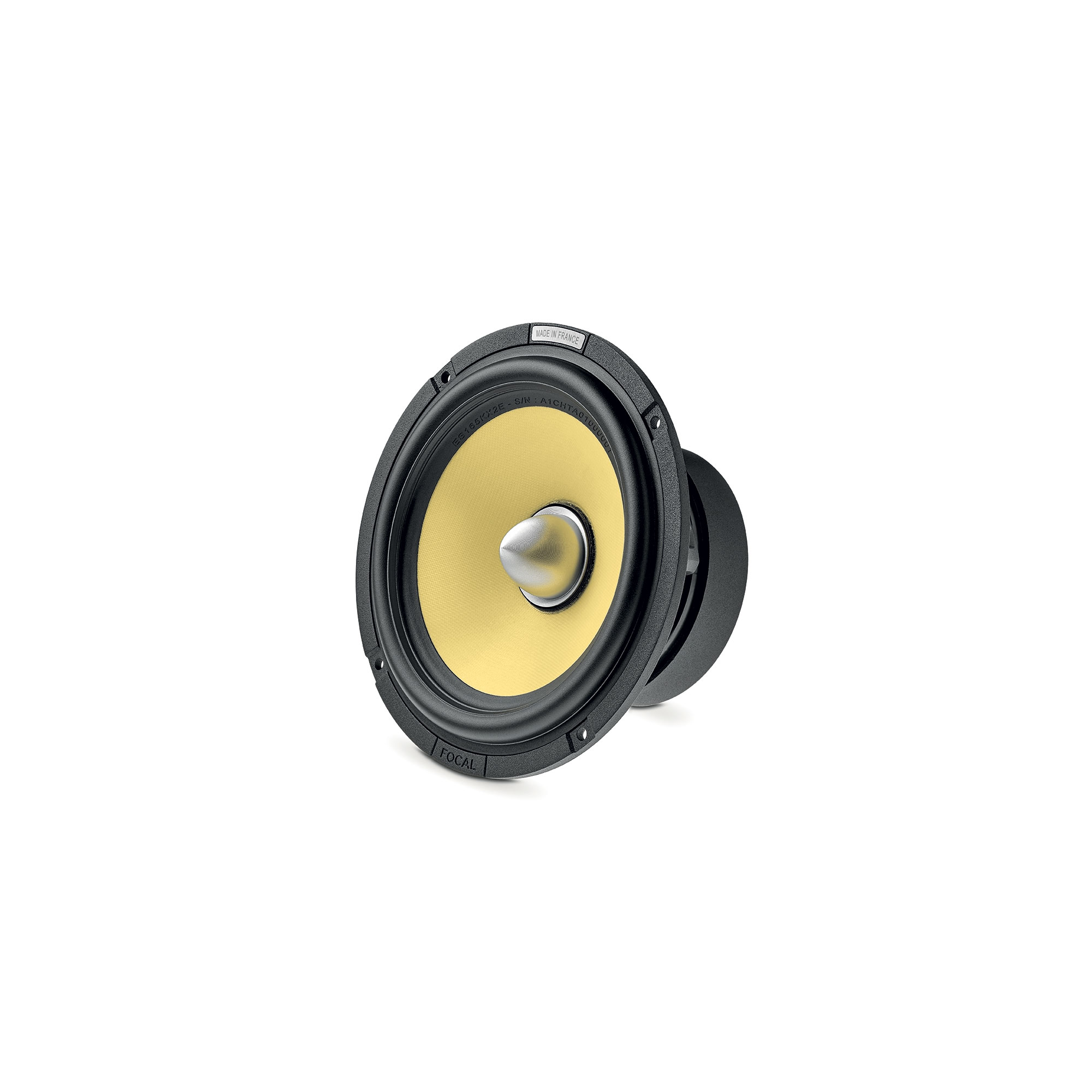

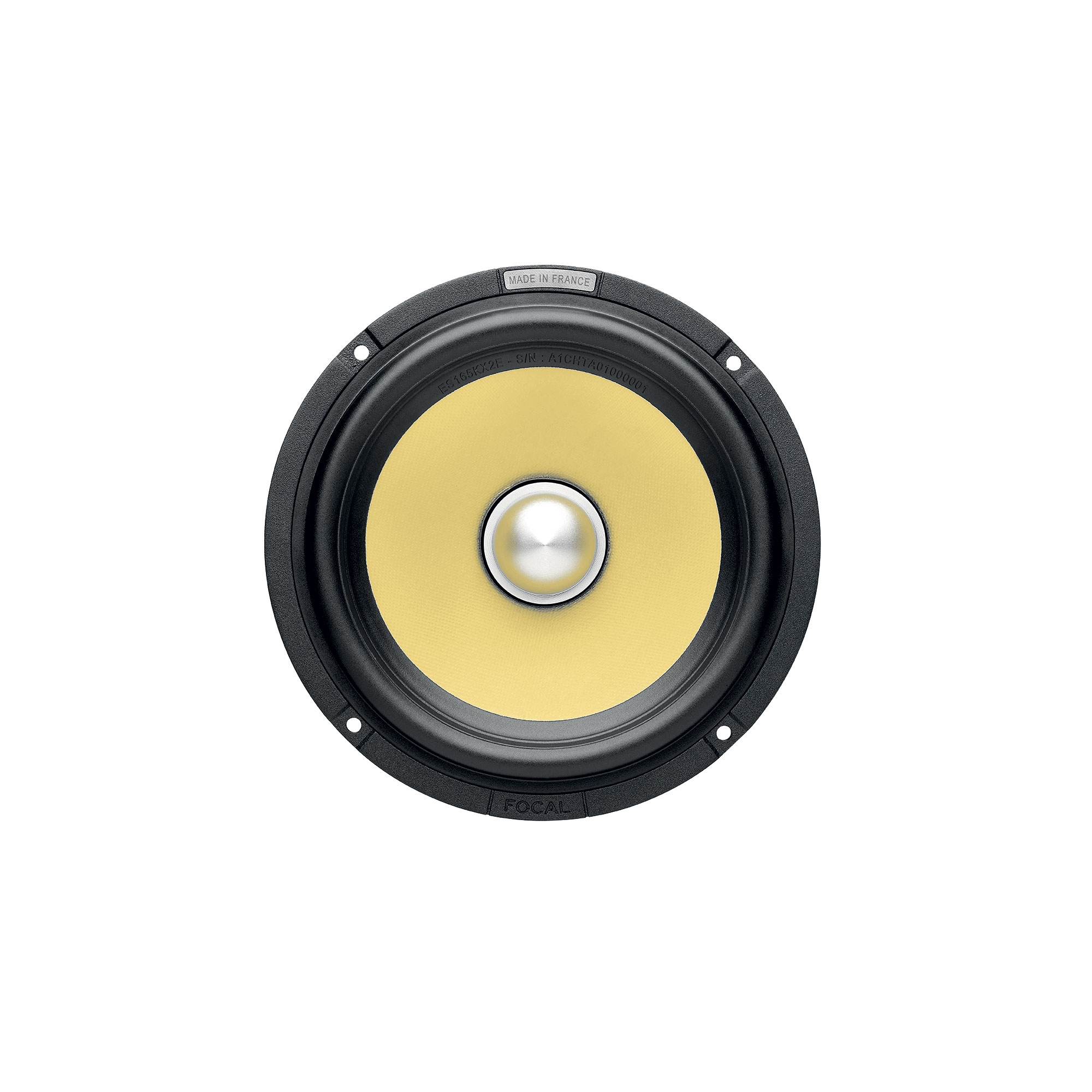

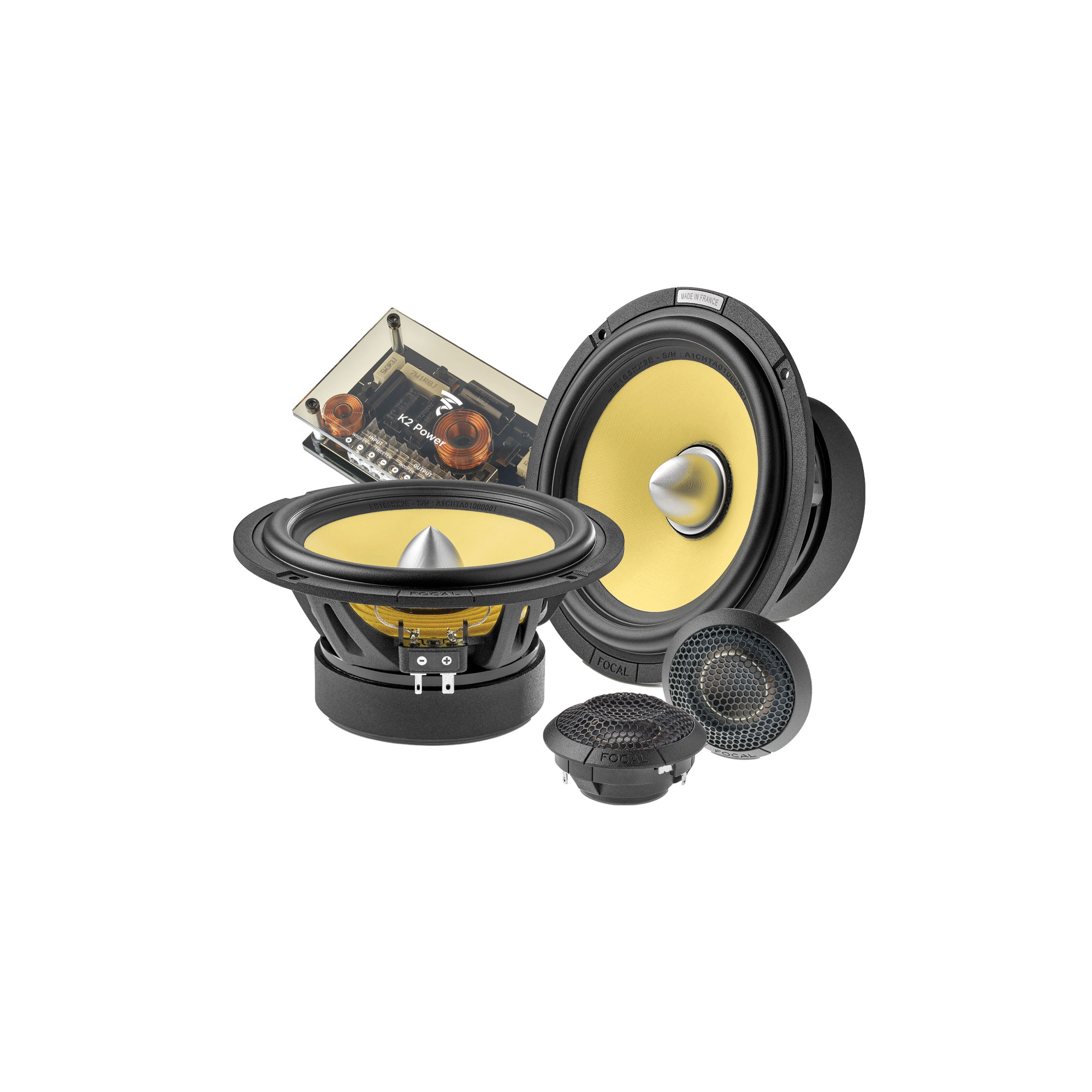

The ES 165 KX2 component kit is composed of two 6½” (165 mm) woofers with Kevlar® cones providing an extremely rich and punchy sound. The centre of the cone is equipped with a phase plug for improved sound dispersion around the vehicle.
The two ‘M’-shaped aramid-fibre TKMX inverted dome tweeters are equipped with bi-amplified crossovers. This enables perfect control over the high end for providing very smooth treble with perfect definition.
Thanks to its excellent power handling, this kit is the reference product of the K2 Power range. It even won over the hearts of the experts when it was officially revealed at the CES in Las Vegas, and received the CES Innovation 2016 award.

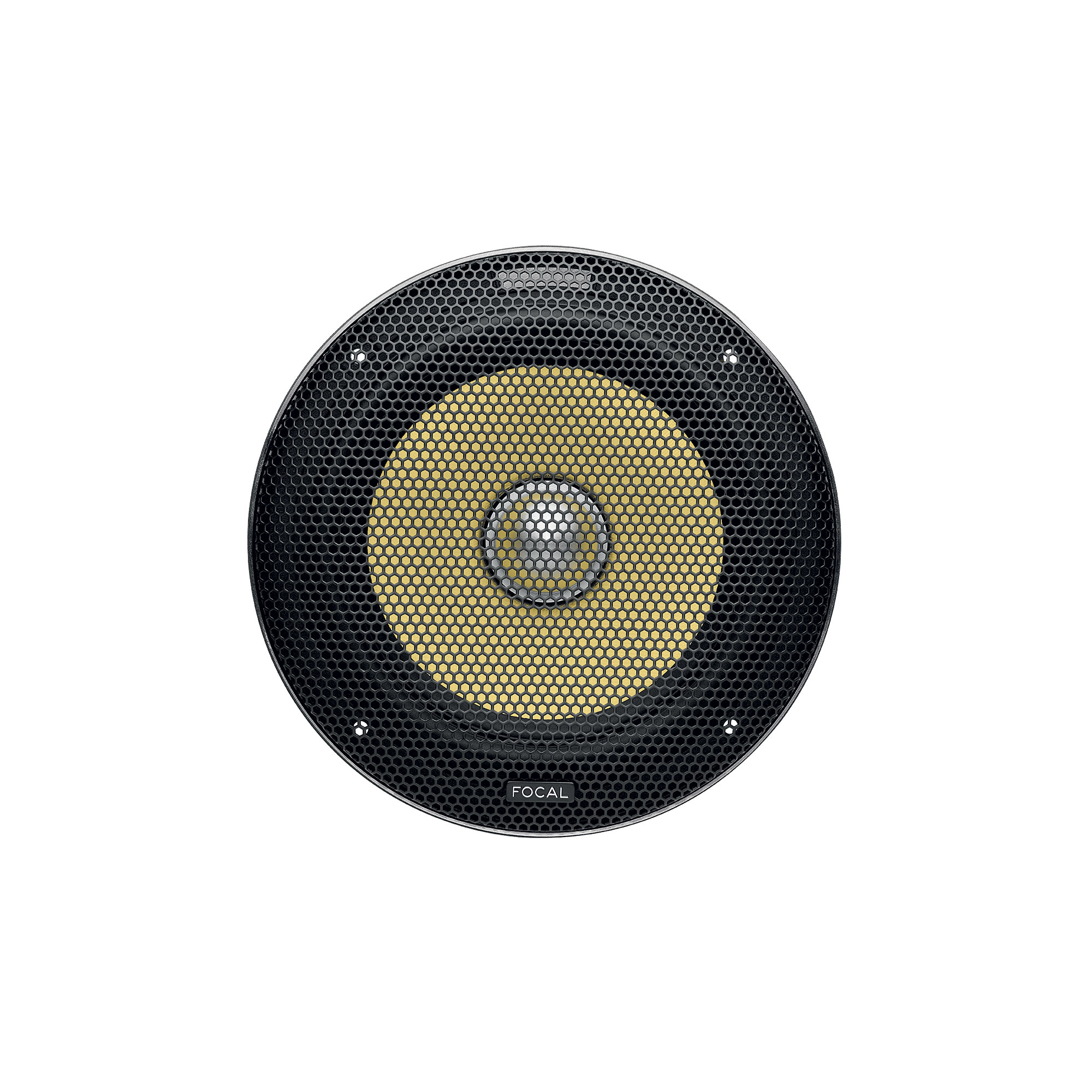

The kit is supplied with aluminium and mesh grilles.
The new K2 Power TKM tweeter features an exclusive “M”-shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a “push-pull” motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
WHAT MAKES THE DIFFERENCE
• Inverted dome “M”-shaped tweeter
• 19/16″ (40mm) VC diameter
• High power handling
• Bi-Amp crossover
• Phase plug for better dispersion
• Aluminum and mesh grille
Specifications
Nominal power 120W
Maximum power 240W
Sensitivity (2,83V/1m) 92.5dB
Cone Kevlar sandwich
Nom. impedance 2Ω
Surround Butyl
DC resistance 1.8Ω
VC diameter 40mm 137⁄64″
Former Kapton
Layers 2
Wire CCAW
Magnet (d x h) 100x22mm 315⁄16×055⁄64″
Net weight 1700g 3.7lbs
PARAMETERS
Rdc 1.8 Ω
Fs 55Hz
Mms 15.3g
Cms 0.54mm/N
Vas 14l
Qts 0.55
Qes 0.61
Qms 5.2
Bxl 4 N/A
Sd 128.6cm2
SPL 89.5dB
Xmax 5.3 mm
TECHNICAL CHaractEristiCS
2-way component kit
Diameter: 6½” (165mm)
Voice coil diameter: 19/1″ (40mm)
Voice coil height: 02/3″ (16.5mm)
Motor: Magnet
Tweeter: TKMX (“M” profile aramid fiber
inverted dome)
Cone: Composite K2 Power “W” sandwich cone
Surround: Tuned Mass Damper (TMD®)
Separated crossover: 6-12/12-18dB (3kHz)
Tweeter Adjustable level: +3; 0; -3dB/oct
Max. power: 240W
Nom. power: 120W RMS
Sensitivity (2.83V/1m): 92.5dB
Frequency response: 55Hz- 22kHz
Impedance: 2 Ω
Accessories: Supplied grilles
