Description

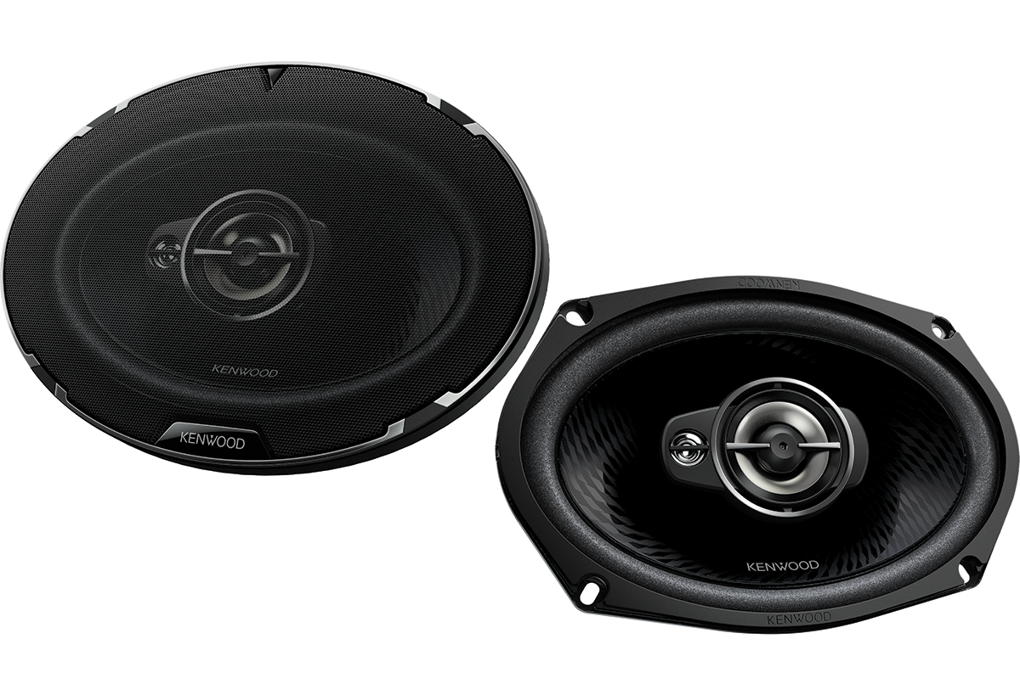

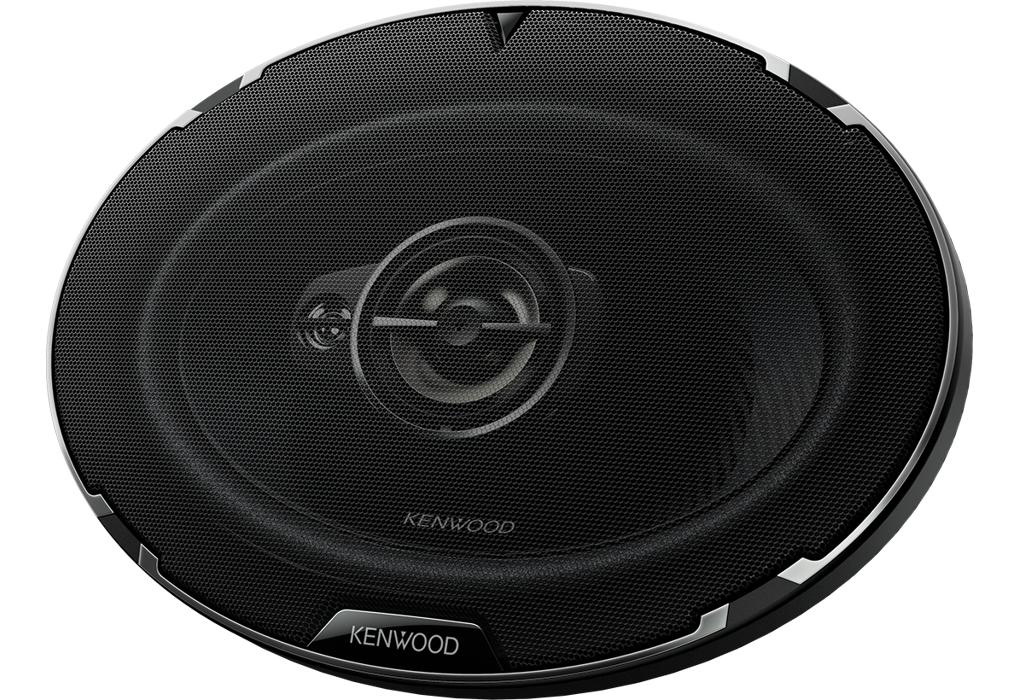

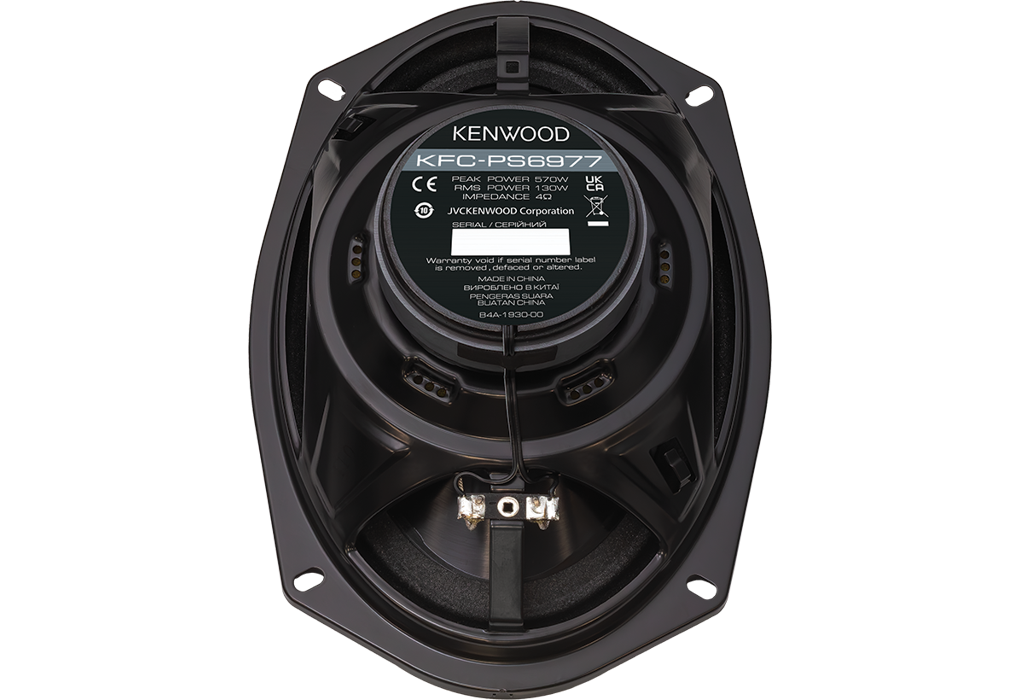

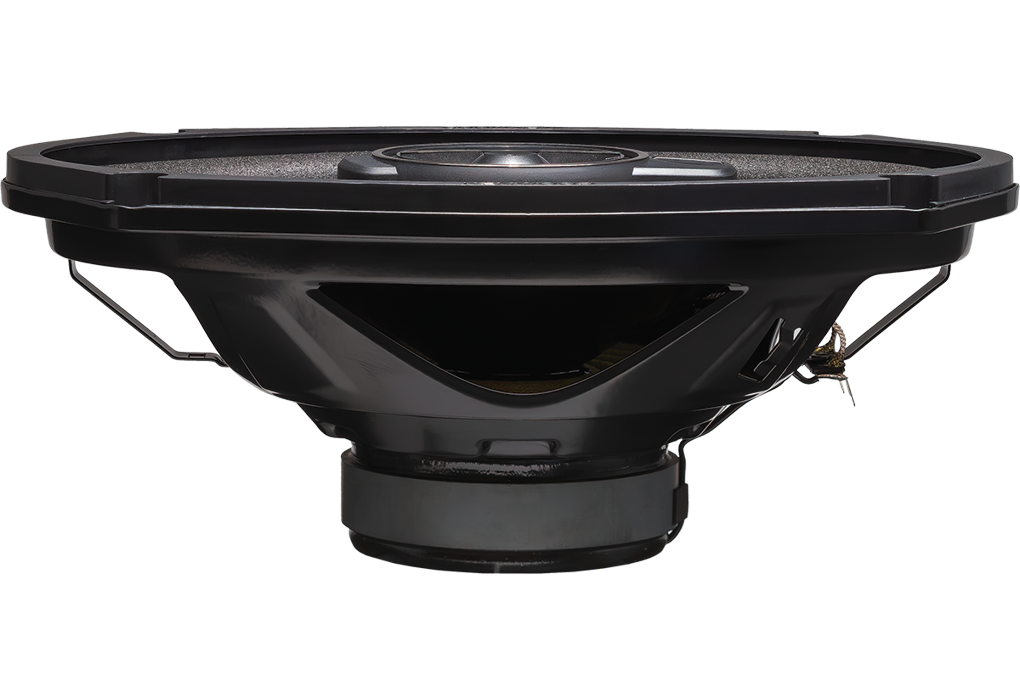

KFC-PS6977
6″x9″ 3-way Performance Standard Series Speaker System
6×9″ 3-Way Performance Standard Speaker System. Features 570W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate
Key Features
| 6×9″ 3-Way Performance Standard Speaker System |
| Woofer cone with Diamond Array Pattern Sound Tune Up Technology |
| Black Coloured Elegant Design with Silver Accents |
| Acoustic Sound Harmonizer Technology |
| Sound Field Enhancer Technology |
| 2 types of Tweeters: 44 and 20mm |
| 570W Peak Input Power / 130W RMS Input Power |
| Low Tweeter Height Design for Shallow Install Space |
| Grille assembly included |
Speaker/woofer Specifications
| Peak Input Power |
570W |
| Rated Input Power |
130W |
| Woofer Cone material |
Black Polypropylene (PP) Cone |
| Woofer cone dimensions |
153 x 229mm |
| Speaker Basket |
Steel (Black painted) |
| Magnet type |
Ferrit (Ø80 x t15) |
| Speaker Surround |
Urethane |
| Sensitivity |
88dB/W/m |
| Frequency Response |
63Hz ~ 22000Hz |
| Speaker Impedance |
4Ω |
| Dimensions with Grill (WxHxD) |
266.1 x 197.3 x 100.1mm |
| Dimensions w/o Grill (WxHxD) |
236.4 x 164 x 93mm |
| Mouting Hole Diameter |
218.5mm x 149.5mm |
| Mounting Depth |
80.5mm |
| Tweeter Height |
12.5mm |
Midrange Speaker Specifications
| Cone Size |
44mm |
| Cone Type |
Silver Balanced Dome |
| Magnet Type |
Ferrite |
Tweeter Specifications
| Cone Size |
20mm |
| Cone Material |
Balanced dome / Ceramic |
Accessories
| Screws (Parker-type) |
Ø 4 x 40mm, 8 pieces |
| Washer |
Ø 4, 8 pieces |
| Adhesive tape pad |
1 piece(s) |
| Grille assembly included |
Yes |
| Speaker cable |
4.5m |
